2017 Norco · UDW

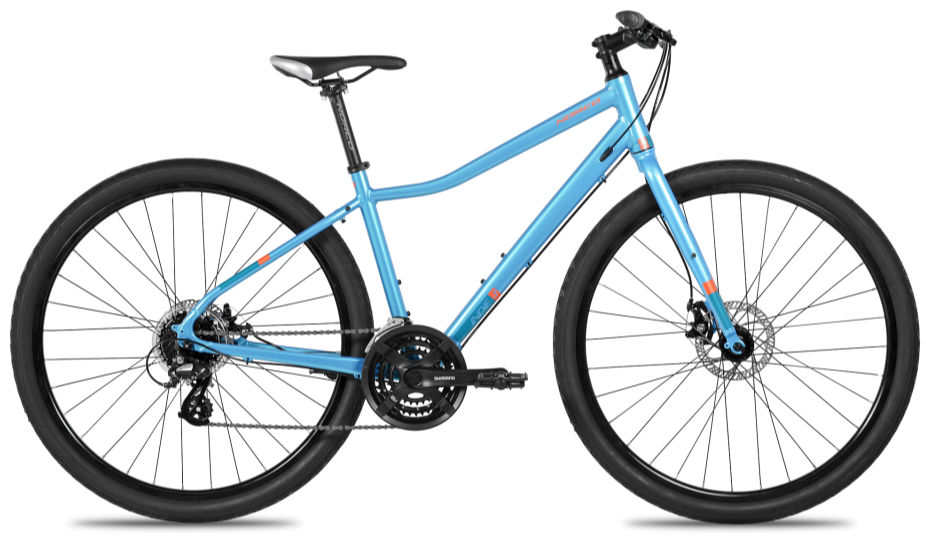

2017 Norco Indie MKII Womens geometry
Full frame geometry for the 2017 Norco Indie MKII Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 548 | 363 | 74.5 | 69.5 | 110 | 515 | 350 | 683 | 65 | 595 | 450 | 1037 |
| XS | 571 | 377 | 74.1 | 70.5 | 130 | 540 | 390 | 705 | 65 | 608 | 450 | 1050 |
| S | 590 | 392 | 73.7 | 70.5 | 150 | 565 | 430 | 725 | 65 | 629 | 450 | 1071 |
| M | 609 | 407 | 73.3 | 70.5 | 170 | 590 | 470 | 778 | 65 | 651 | 450 | 1093 |
All measurements in millimetres unless marked (°) for angles.
