2015 Norco · UD

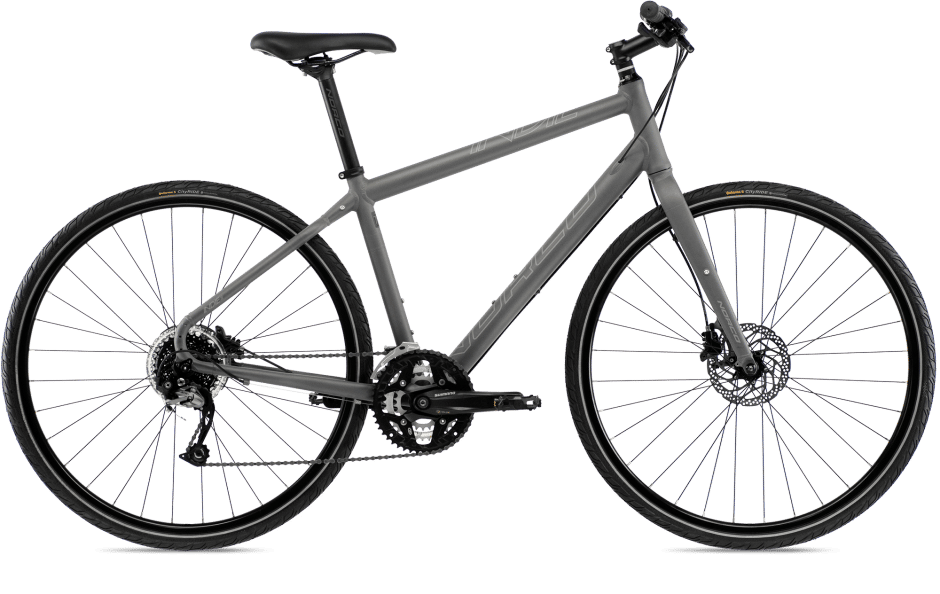

2015 Norco Indie MKI geometry
Full frame geometry for the 2015 Norco Indie MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14.5 | 560 | 380 | 74.5 | 70 | 135 | 535 | 365 | 731 | 65 | 611 | 450 | 1053 |
| 16 | 581 | 388 | 74 | 70.5 | 155 | 555 | 412 | 758 | 65 | 622 | 450 | 1064 |
| 18 | 602 | 397 | 73.5 | 71 | 175 | 575 | 459 | 785 | 65 | 632 | 450 | 1074 |
| 20 | 621 | 405 | 73 | 71 | 195 | 595 | 510 | 816 | 65 | 647 | 450 | 1089 |
| 22 | 642 | 413 | 72.5 | 71.5 | 215 | 615 | 562 | 849 | 65 | 656 | 450 | 1098 |
All measurements in millimetres unless marked (°) for angles.
