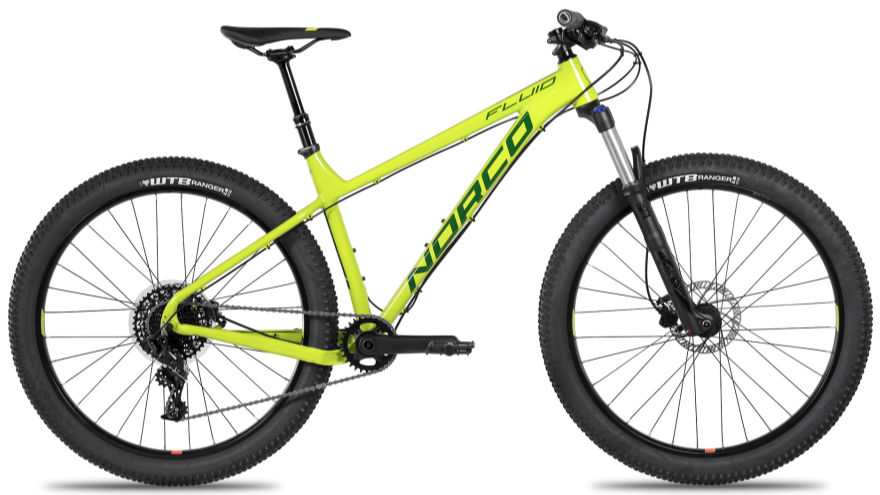

2017 Norco Fluid HT+ geometry
Full frame geometry for the 2017 Norco Fluid HT+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 403 | 73.1 | 67.5 | 110 | 585 | 410 | 717 | 41 | 681 | 420 | 1098 |
| XS | 598 | 378 | 73.5 | 67.5 | 110 | 555 | 380 | 718 | 41 | 655 | 420 | 1072 |
| M | 611 | 425 | 72.7 | 67.5 | 100 | 615 | 440 | 773 | 45 | 716 | 430 | 1142 |
| L | 620 | 447 | 72.3 | 67.5 | 110 | 645 | 470 | 784 | 45 | 742 | 430 | 1168 |
| XL | 630 | 469 | 71.9 | 67.5 | 120 | 675 | 500 | 795 | 45 | 768 | 430 | 1194 |
All measurements in millimetres unless marked (°) for angles.
