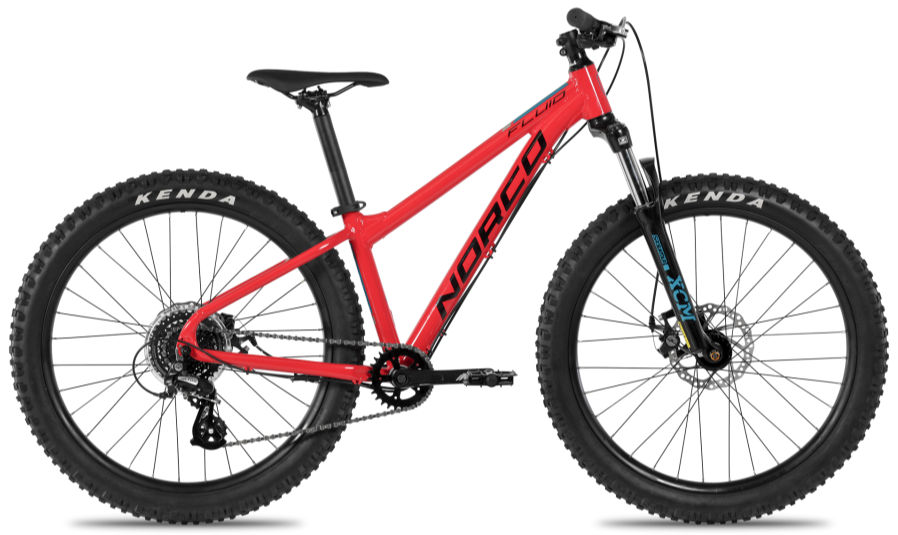

2017 Norco Fluid HT+ 24 geometry
Full frame geometry for the 2017 Norco Fluid HT+ 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 553 | 320 | 72 | 69 | 90 | 500 | 320 | 803 | 47 | 559 | 385 | 939 |
All measurements in millimetres unless marked (°) for angles.
