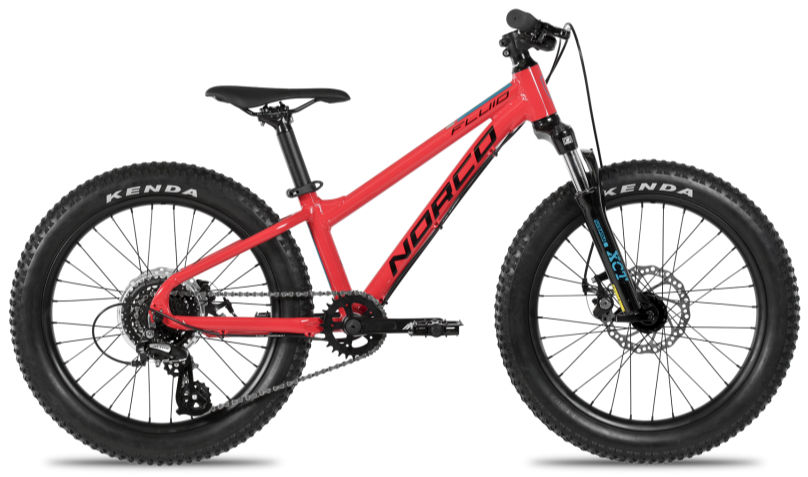

2017 Norco Fluid HT+ 20 geometry
Full frame geometry for the 2017 Norco Fluid HT+ 20, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 445 | 303 | 70 | 69 | 90 | 465 | 255 | 15 | 511 | 338 | 849 |
All measurements in millimetres unless marked (°) for angles.
