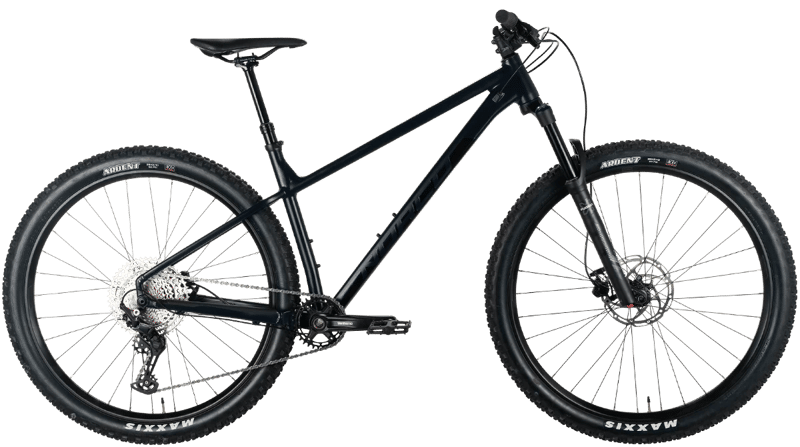

2021 Norco Fluid H1 29 geometry
Full frame geometry for the 2021 Norco Fluid H1 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 619 | 440 | 74.5 | 66.5 | 100 | 612 | 420 | 661 | 58 | 430 | 1166 | 51 | 109 |
| L | 628 | 470 | 74.5 | 66.5 | 110 | 644 | 450 | 677 | 58 | 430 | 1200 | 51 | 109 |
| XL | 637 | 500 | 74.5 | 66.5 | 120 | 677 | 490 | 701 | 58 | 430 | 1234 | 51 | 109 |
All measurements in millimetres unless marked (°) for angles.
