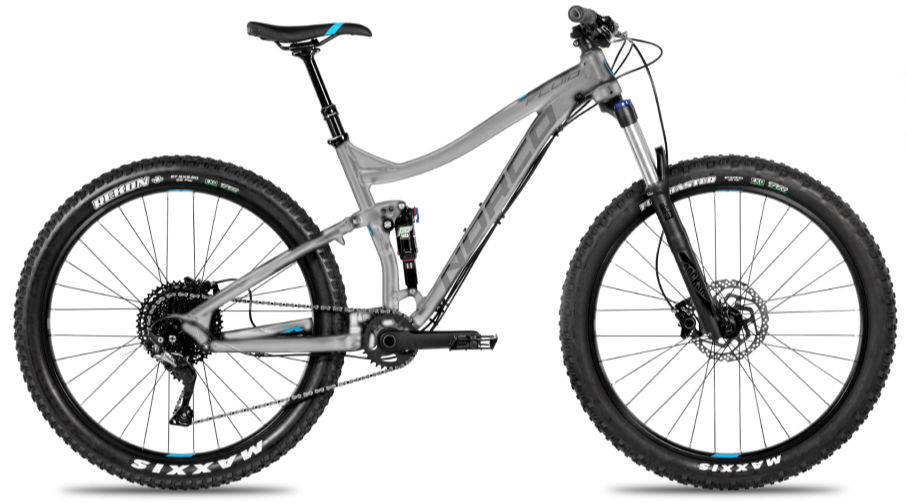

2017 Norco Fluid FS+ geometry
Full frame geometry for the 2017 Norco Fluid FS+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 606 | 425 | 73.5 | 68 | 100 | 605 | 445 | 756 | 31 | 714 | 450 | 1162 |
| S | 606 | 395 | 73.5 | 68 | 100 | 575 | 400 | 768 | 31 | 684 | 450 | 1132 |
| L | 615 | 453 | 73.5 | 68 | 110 | 635 | 490 | 786 | 31 | 744 | 450 | 1193 |
| XL | 625 | 480 | 73.5 | 68 | 120 | 665 | 535 | 786 | 31 | 775 | 450 | 1224 |
All measurements in millimetres unless marked (°) for angles.
