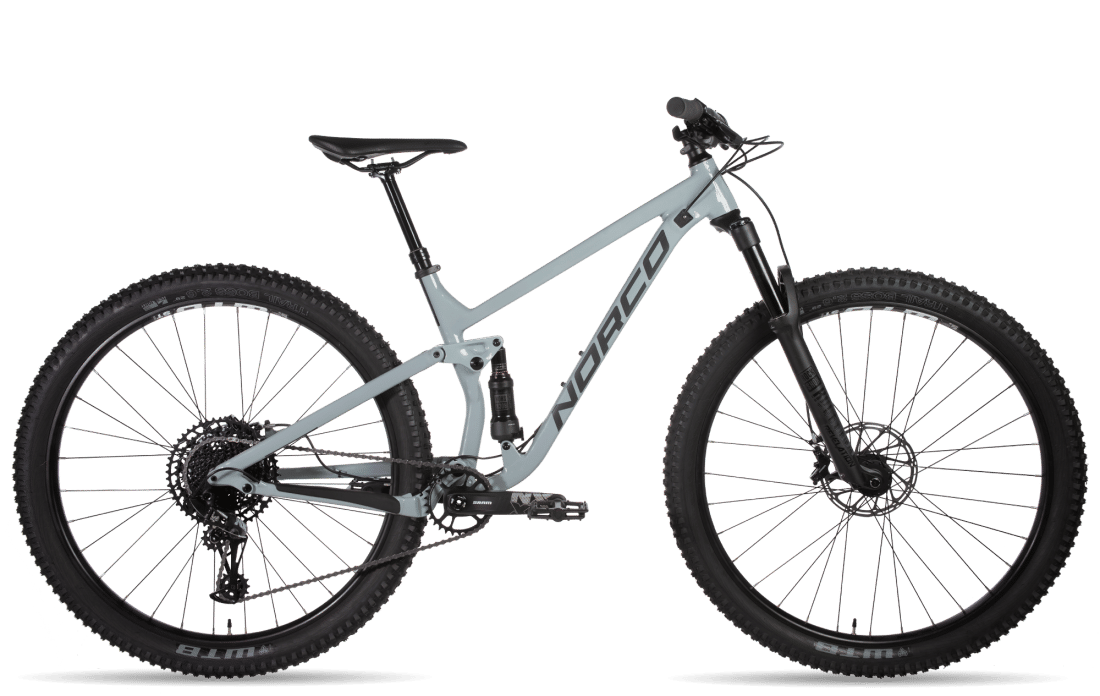

2019 Norco Fluid FS MK II geometry
Full frame geometry for the 2019 Norco Fluid FS MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 568 | 380 | 76 | 66 | 100 | 522 | 370 | 750 | 18 | 671 | 431 | 1101 |
| S | 577 | 410 | 76 | 66 | 110 | 554 | 390 | 750 | 18 | 705 | 431 | 1135 |
| M | 603 | 440 | 76 | 66.5 | 100 | 590 | 420 | 760 | 36 | 743 | 429 | 1169 |
| L | 612 | 470 | 76 | 66.5 | 110 | 623 | 450 | 770 | 36 | 777 | 429 | 1204 |
| XL | 621 | 500 | 76 | 66.5 | 120 | 655 | 490 | 780 | 36 | 811 | 429 | 1237 |
All measurements in millimetres unless marked (°) for angles.
