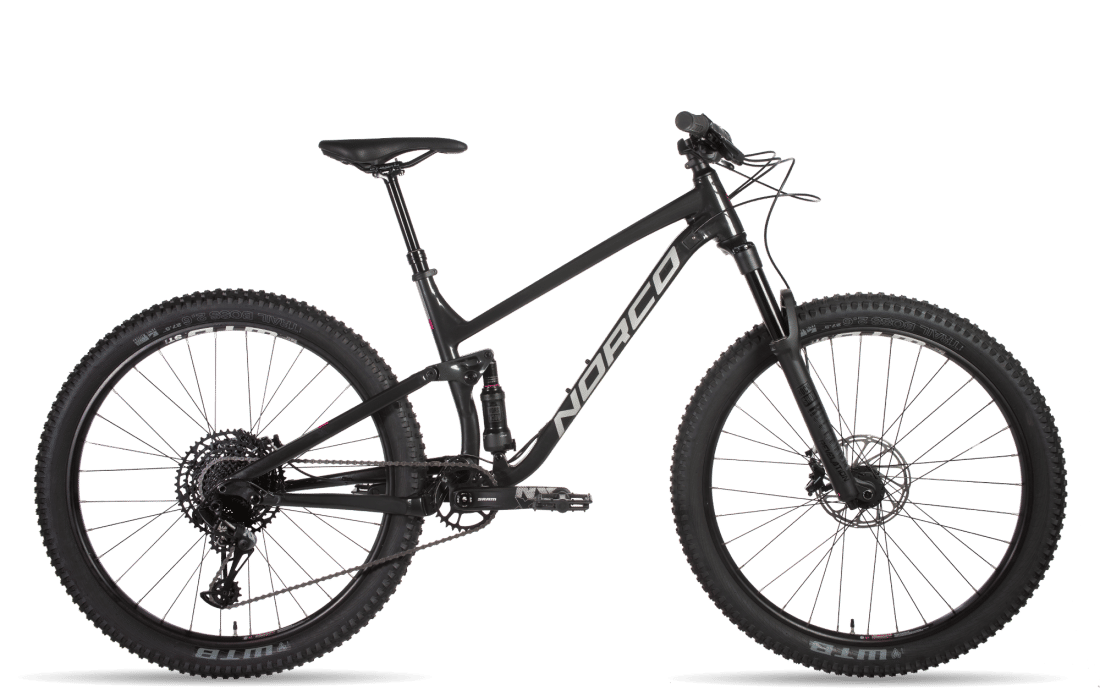

2019 Norco Fluid FS MK II Womens geometry
Full frame geometry for the 2019 Norco Fluid FS MK II Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 568 | 380 | 76 | 66 | 100 | 522 | 370 | 750 | 18 | 671 | 431 | 1101 |
| S | 577 | 410 | 76 | 66 | 110 | 554 | 390 | 750 | 18 | 705 | 431 | 1135 |
| M | 587 | 440 | 76 | 66 | 120 | 586 | 420 | 760 | 18 | 739 | 431 | 1169 |
All measurements in millimetres unless marked (°) for angles.
