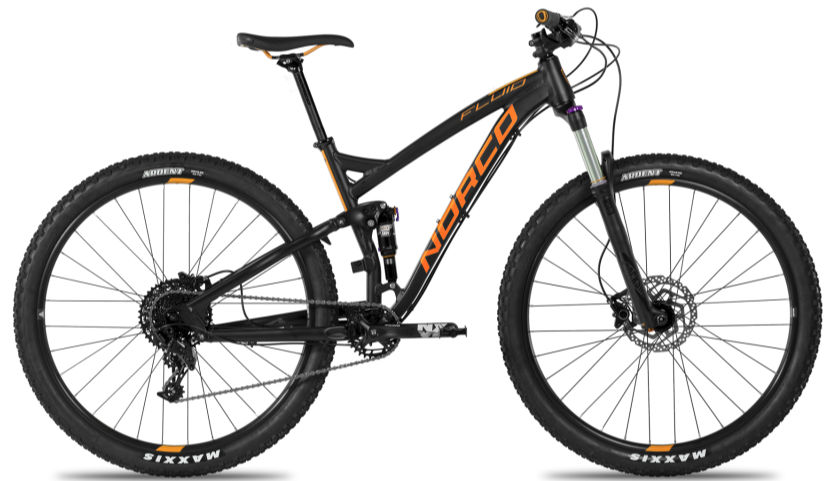

2017 Norco Fluid FS (29) geometry
Full frame geometry for the 2017 Norco Fluid FS (29), size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 612 | 369 | 73.5 | 69.5 | 100 | 550 | 400 | 780 | 39 | 639 | 450 | 1086 |
| M | 614 | 398 | 73.5 | 69.5 | 100 | 580 | 445 | 795 | 39 | 663 | 450 | 1111 |
| L | 623 | 425 | 73.5 | 69.5 | 110 | 610 | 490 | 793 | 39 | 694 | 450 | 1141 |
| XL | 633 | 453 | 73.5 | 69.5 | 120 | 640 | 535 | 779 | 39 | 725 | 450 | 1172 |
All measurements in millimetres unless marked (°) for angles.
