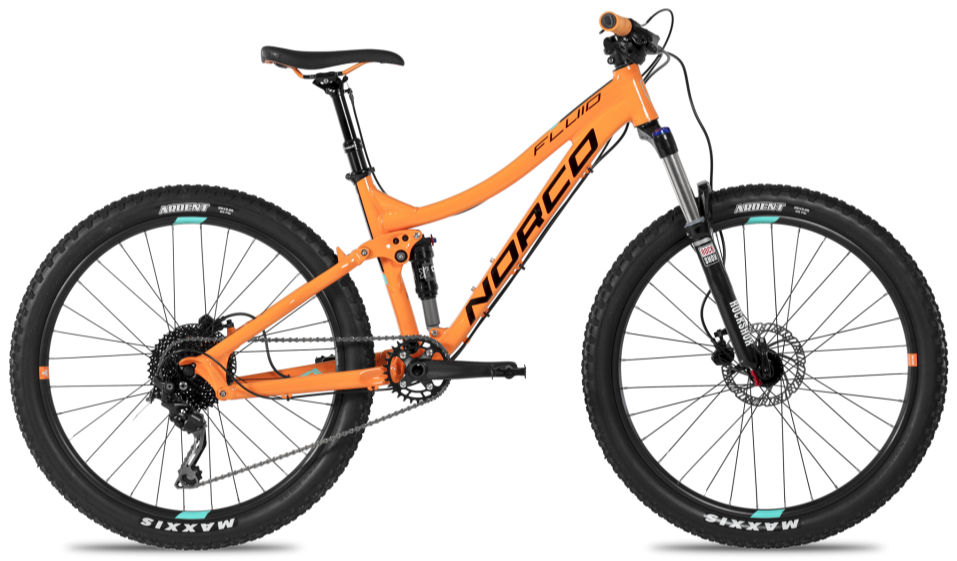

2017 Norco Fluid FS 26 geometry
Full frame geometry for the 2017 Norco Fluid FS 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 559 | 384 | 73.2 | 67.9 | 110 | 553 | 380 | 805 | 2 | 659 | 420 | 1079 |
All measurements in millimetres unless marked (°) for angles.
