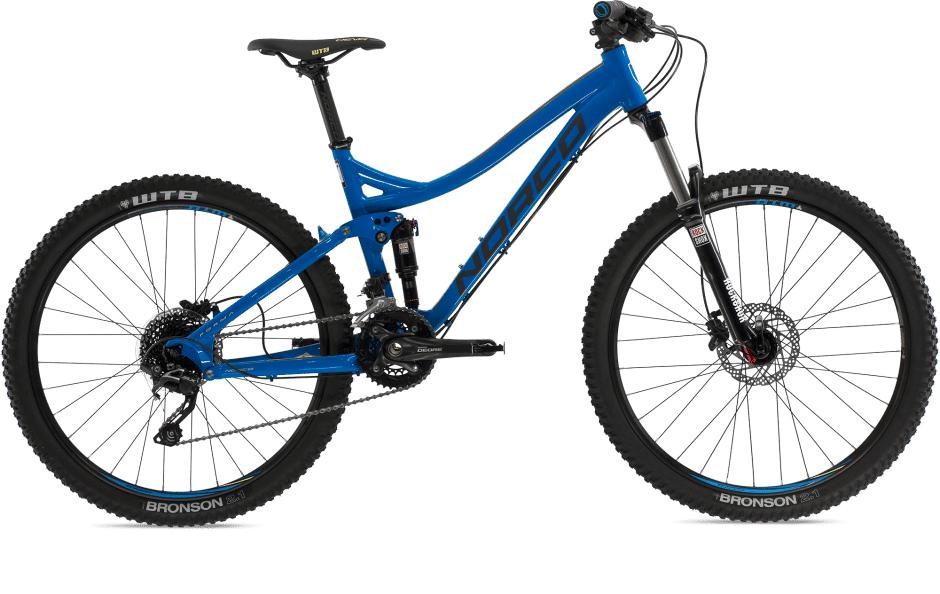

2015 Norco Fluid Forma 6 geometry
Full frame geometry for the 2015 Norco Fluid Forma 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 554 | 391 | 74 | 68.5 | 110 | 550 | 380 | 692 | 5 | 650 | 420 | 1070 |
All measurements in millimetres unless marked (°) for angles.
