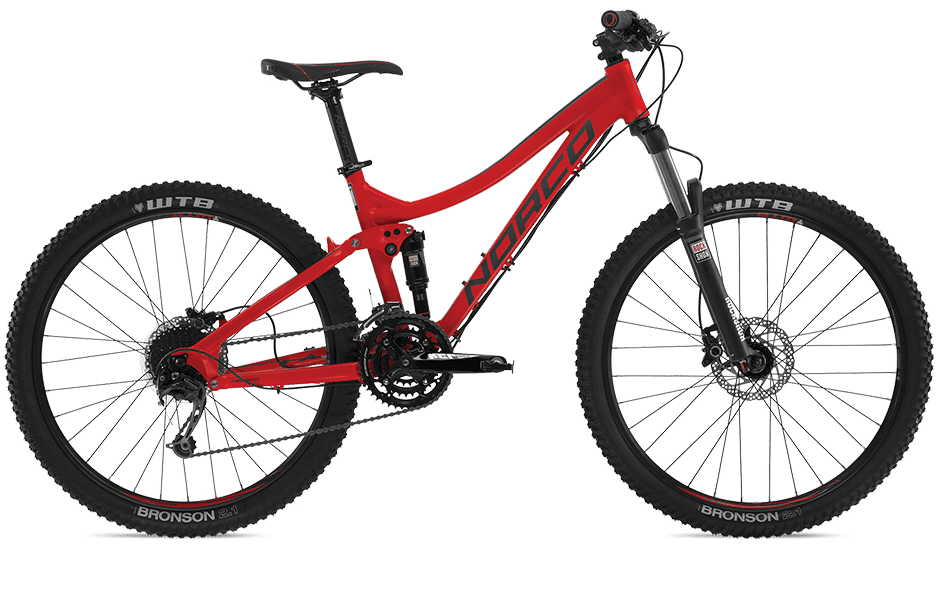

2015 Norco Fluid 6 geometry
Full frame geometry for the 2015 Norco Fluid 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 570 | 392 | 74.5 | 68.5 | 100 | 550 | 380 | 749 | 18 | 655 | 425 | 1079 |
| S | 577 | 412 | 74.5 | 68.5 | 107 | 572 | 405 | 735 | 18 | 678 | 425 | 1101 |
| M | 584 | 432 | 74.5 | 68.5 | 115 | 594 | 435 | 767 | 18 | 700 | 425 | 1125 |
| L | 591 | 452 | 74.5 | 68.5 | 122 | 616 | 470 | 760 | 18 | 723 | 425 | 1148 |
| XL | 598 | 472 | 74.5 | 68.5 | 130 | 638 | 510 | 752 | 18 | 746 | 425 | 1170 |
All measurements in millimetres unless marked (°) for angles.
