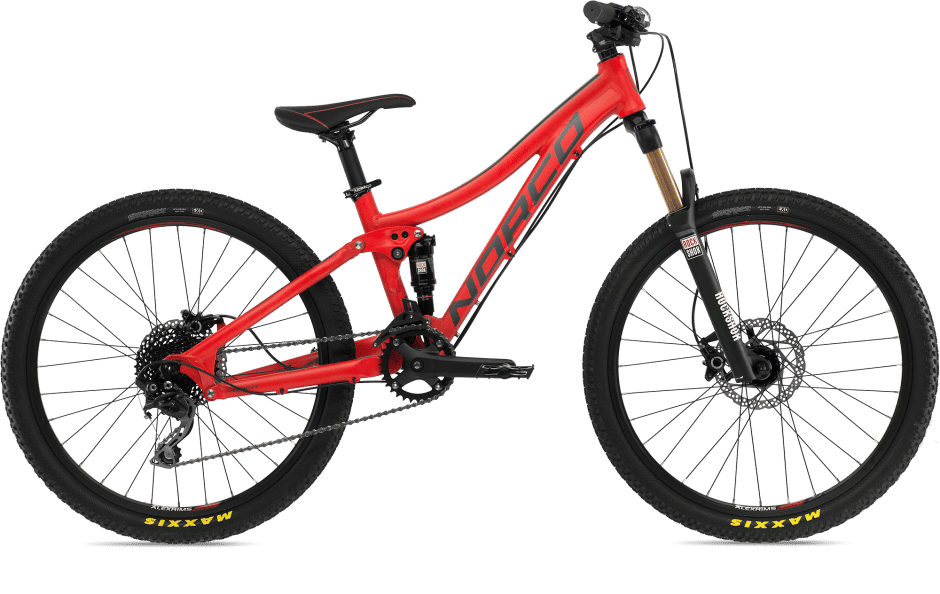

2015 Norco Fluid 4 geometry
Full frame geometry for the 2015 Norco Fluid 4, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 517 | 332 | 72 | 68 | 100 | 500 | 320 | 670 | 2 | 585 | 415 | 1000 |
All measurements in millimetres unless marked (°) for angles.
