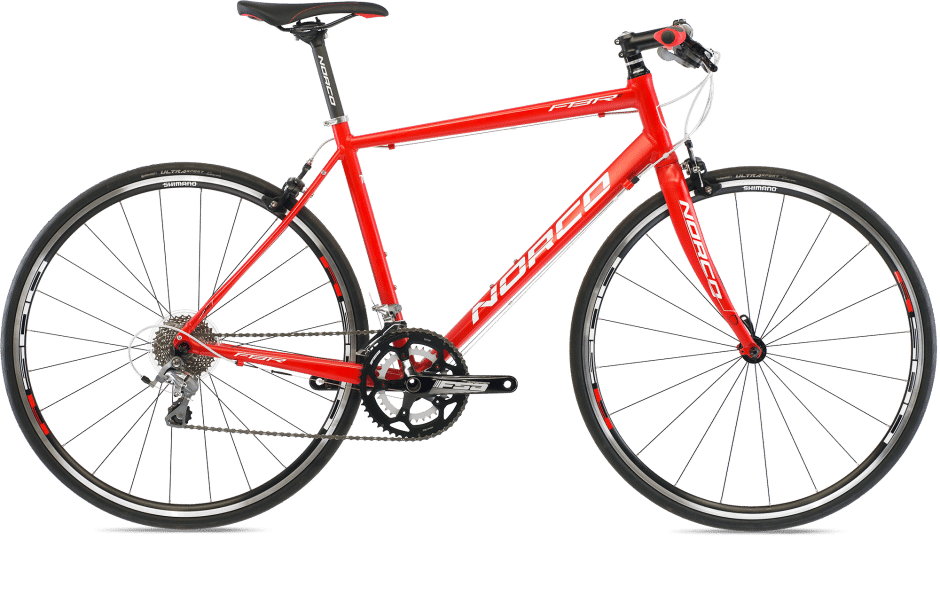

2015 Norco FBR geometry
Full frame geometry for the 2015 Norco FBR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 530 | 398 | 75 | 71 | 130 | 540 | 450 | 732 | 68 | 614 | 425 | 1030 |
| 51 | 550 | 407 | 74.5 | 71.5 | 150 | 560 | 480 | 754 | 68 | 625 | 425 | 1041 |
| 54 | 571 | 416 | 74 | 72 | 170 | 580 | 510 | 777 | 68 | 636 | 425 | 1052 |
| 57 | 590 | 425 | 73.5 | 72 | 190 | 600 | 540 | 799 | 68 | 651 | 425 | 1067 |
| 60 | 611 | 433 | 73 | 72.5 | 210 | 620 | 570 | 822 | 68 | 661 | 425 | 1077 |
All measurements in millimetres unless marked (°) for angles.
