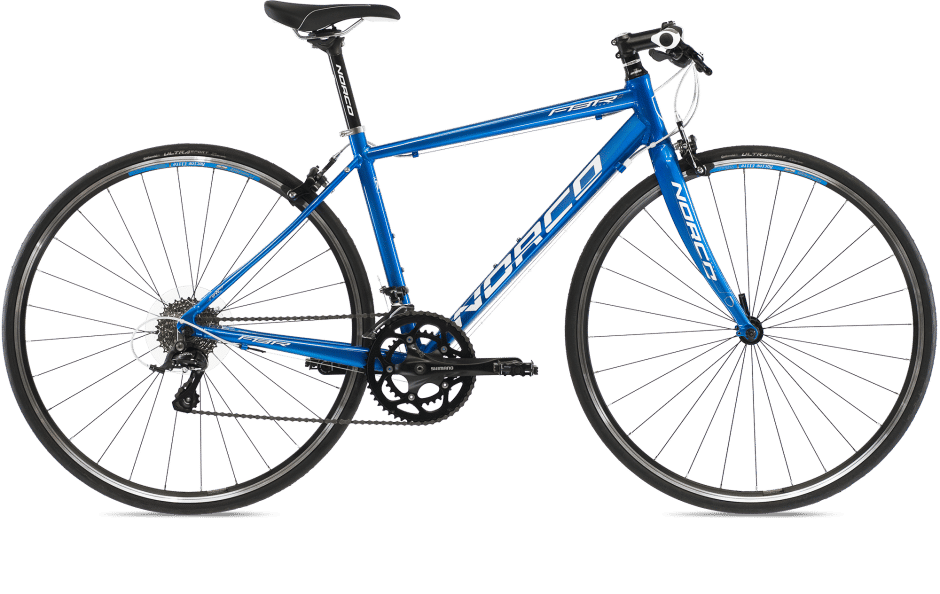

2015 Norco FBR Forma geometry
Full frame geometry for the 2015 Norco FBR Forma, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 509 | 388 | 75 | 70.5 | 110 | 525 | 420 | 709 | 68 | 602 | 425 | 1017 |
| 48 | 530 | 398 | 75 | 71 | 130 | 540 | 450 | 732 | 68 | 614 | 425 | 1030 |
| 51 | 550 | 407 | 74.5 | 71.5 | 150 | 560 | 480 | 754 | 68 | 625 | 425 | 1041 |
All measurements in millimetres unless marked (°) for angles.
