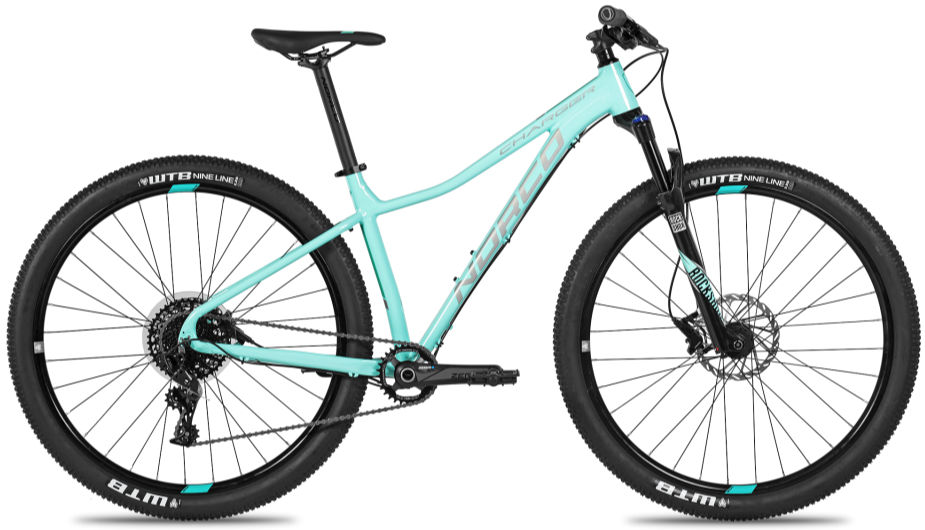

2017 Norco Charger Womens geometry
Full frame geometry for the 2017 Norco Charger Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 591 | 376 | 73.6 | 69.3 | 100 | 550 | 390 | 706 | 55 | 626 | 435 | 1056 |
| XXS | 591 | 356 | 74 | 69 | 100 | 525 | 340 | 715 | 55 | 609 | 435 | 1038 |
| S | 602 | 398 | 73.2 | 69.5 | 110 | 580 | 430 | 717 | 55 | 650 | 435 | 1079 |
| M | 622 | 430 | 73 | 70 | 105 | 620 | 470 | 775 | 63 | 690 | 445 | 1128 |
All measurements in millimetres unless marked (°) for angles.
