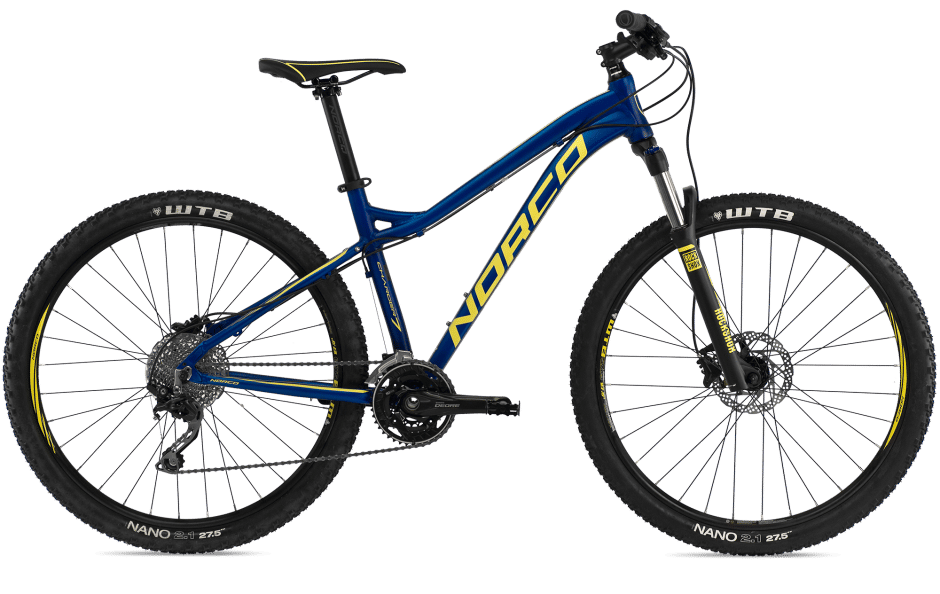

2015 Norco Charger 7 geometry
Full frame geometry for the 2015 Norco Charger 7, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13 | 593 | 360 | 74 | 69.5 | 100 | 530 | 330 | 739 | 55 | 608 | 435 | 1038 |
| 15 | 605 | 376 | 73.8 | 70 | 110 | 552 | 381 | 730 | 55 | 623 | 435 | 1052 |
| 17 | 614 | 391 | 73.5 | 70 | 120 | 573 | 432 | 737 | 55 | 642 | 435 | 1071 |
| 18.5 | 623 | 407 | 73.3 | 70 | 135 | 594 | 470 | 747 | 50 | 662 | 435 | 1092 |
| 20 | 632 | 422 | 73 | 70 | 145 | 615 | 508 | 748 | 50 | 680 | 435 | 1110 |
| 21.5 | 642 | 437 | 72.8 | 70 | 155 | 636 | 546 | 757 | 50 | 699 | 435 | 1129 |
All measurements in millimetres unless marked (°) for angles.
