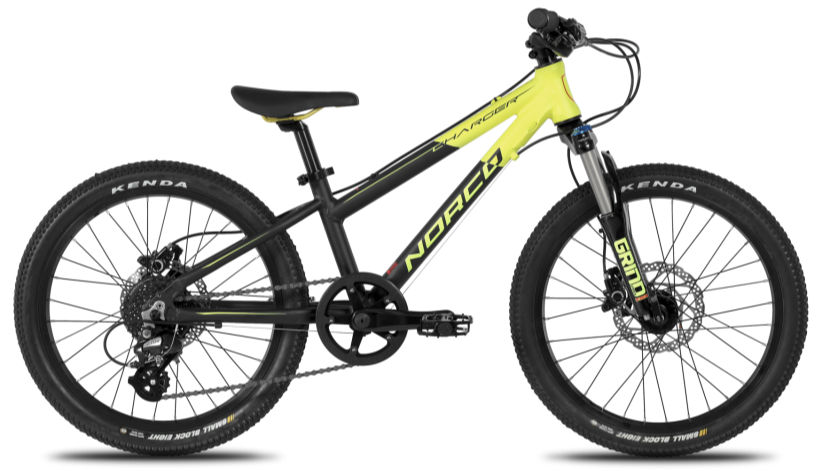

2017 Norco Charger 20 geometry
Full frame geometry for the 2017 Norco Charger 20, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 425 | 310 | 70 | 69 | 90 | 465 | 255 | 5 | 514 | 360 | 874 |
All measurements in millimetres unless marked (°) for angles.
