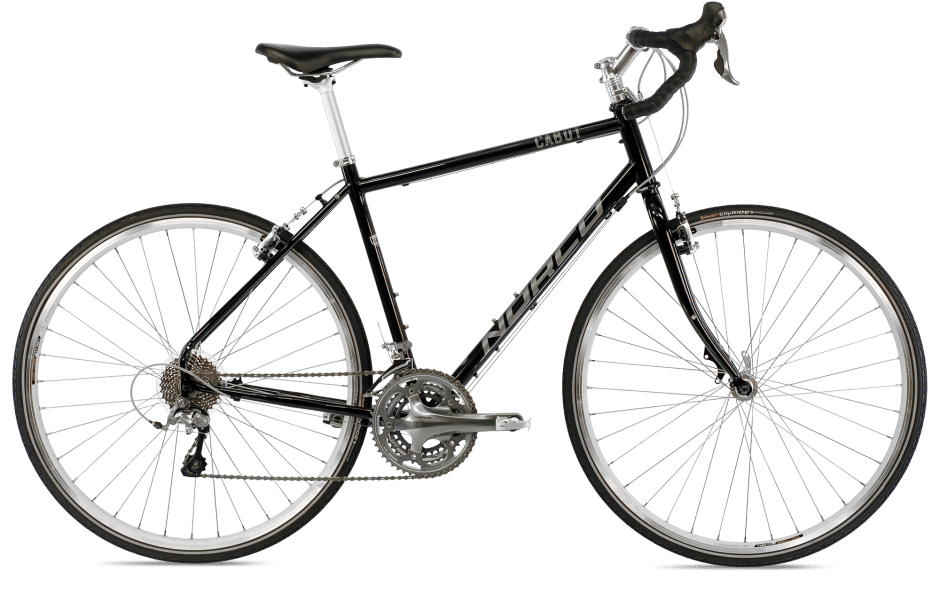

2015 Norco Cabot geometry
Full frame geometry for the 2015 Norco Cabot, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 550 | 367 | 74.5 | 70.5 | 110 | 520 | 746 | 72 | 596 | 450 | 1036 |
| 51 | 571 | 371 | 74 | 71 | 130 | 535 | 769 | 72 | 602 | 450 | 1042 |
| 54 | 592 | 375 | 73.5 | 71.5 | 150 | 550 | 791 | 72 | 608 | 450 | 1048 |
| 57 | 613 | 378 | 73 | 72 | 170 | 565 | 814 | 72 | 612 | 450 | 1052 |
| 60 | 634 | 380 | 72.5 | 72.5 | 190 | 580 | 836 | 72 | — | 450 | 1056 |
All measurements in millimetres unless marked (°) for angles.
