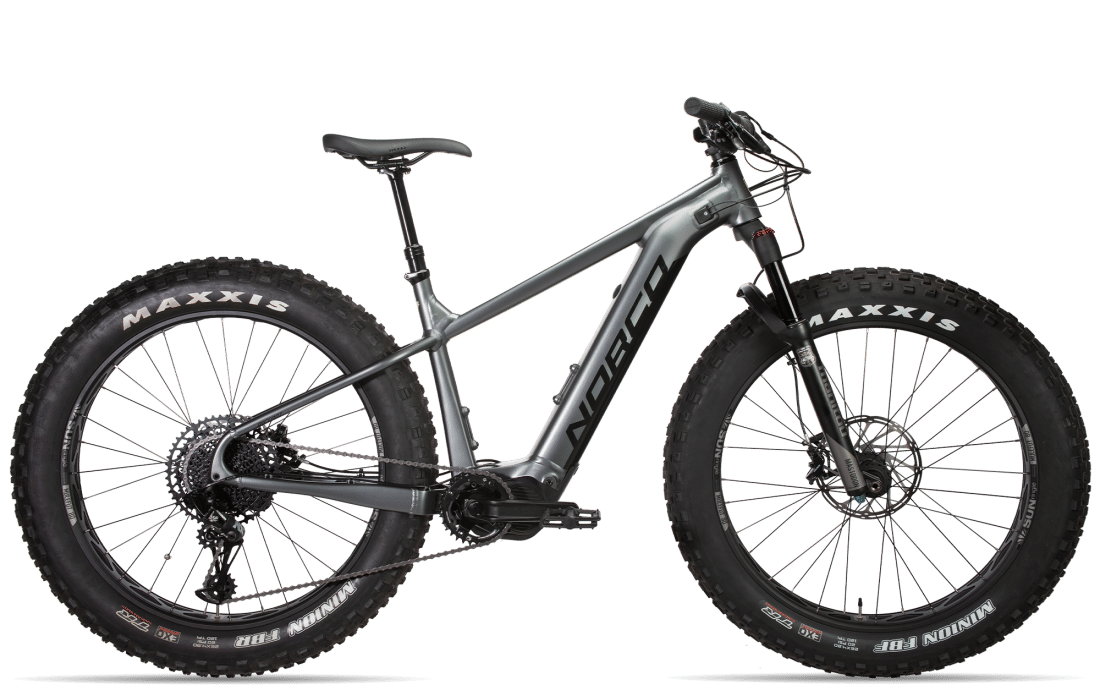

2019 Norco Bigfoot VLT geometry
Full frame geometry for the 2019 Norco Bigfoot VLT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 610 | 410 | 75 | 68 | 100 | 573 | 405 | 767 | 60 | 690 | 455 | 1138 | 51 |
| M | 619 | 440 | 75 | 68 | 110 | 606 | 435 | 763 | 60 | 723 | 455 | 1172 | 51 |
| L | 629 | 470 | 75 | 68 | 120 | 638 | 470 | 772 | 60 | 757 | 455 | 1206 | 51 |
| XL | 638 | 500 | 75 | 68 | 130 | 671 | 510 | 783 | 60 | 791 | 455 | 1239 | 51 |
All measurements in millimetres unless marked (°) for angles.
