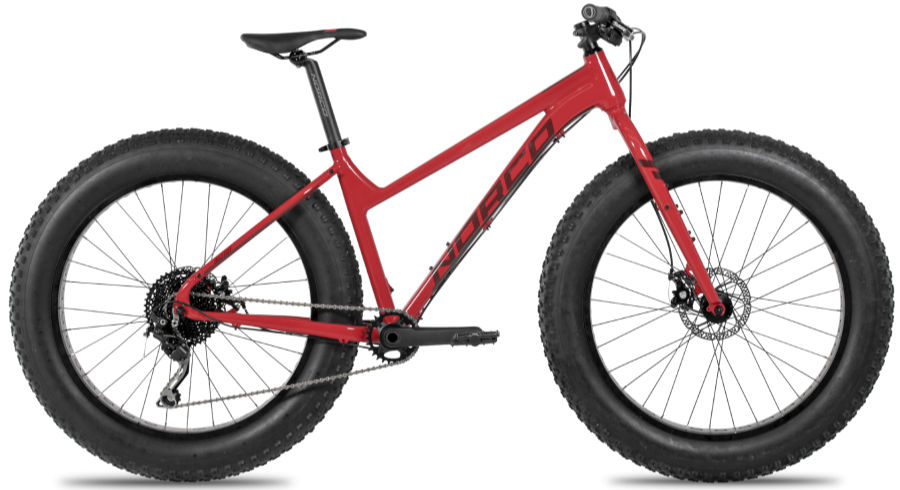

2017 Norco Bigfoot MKII geometry
Full frame geometry for the 2017 Norco Bigfoot MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 578 | 413 | 73 | 68 | 100 | 590 | 380 | 703 | 54 | 678 | 450 | 1120 |
| M | 582 | 437 | 73 | 68 | 105 | 615 | 430 | 715 | 54 | 701 | 450 | 1145 |
| L | 587 | 460 | 73 | 68 | 110 | 640 | 480 | 722 | 54 | 726 | 450 | 1171 |
| XL | 592 | 484 | 73 | 68 | 115 | 665 | 530 | 748 | 54 | 752 | 450 | 1196 |
All measurements in millimetres unless marked (°) for angles.
