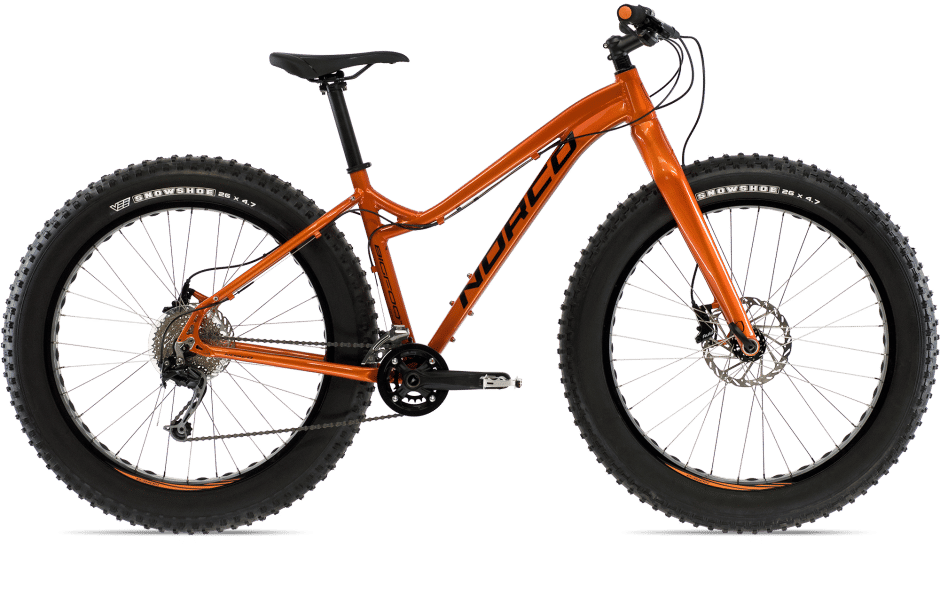

2015 Norco Bigfoot MKI geometry
Full frame geometry for the 2015 Norco Bigfoot MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 398 | 74.5 | 70.5 | 100 | 566 | 381 | 714 | 54 | 641 | 450 | 1082 |
| M | 604 | 416 | 74.6 | 70.6 | 105 | 586 | 432 | 716 | 54 | 666 | 450 | 1102 |
| L | 609 | 437 | 74.7 | 70.7 | 110 | 606 | 483 | 720 | 54 | 682 | 450 | 1123 |
| XL | 614 | 454 | 74.8 | 70.8 | 115 | 626 | 533 | 740 | 54 | 702 | 450 | 1143 |
All measurements in millimetres unless marked (°) for angles.
