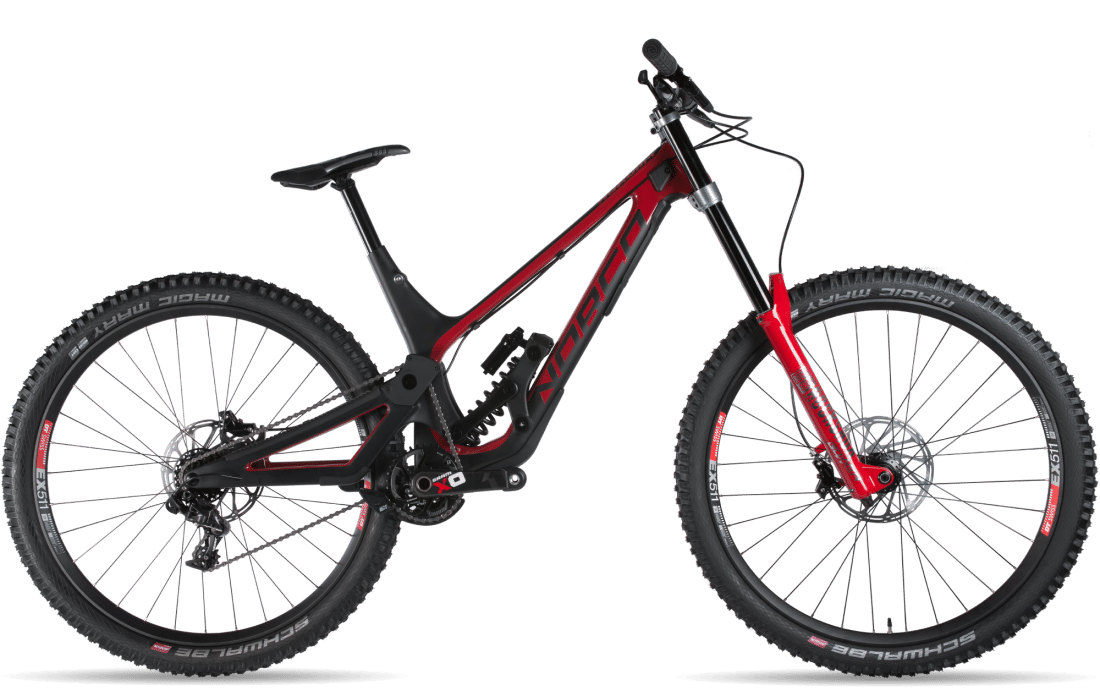

2019 Norco Aurum HSP geometry
Full frame geometry for the 2019 Norco Aurum HSP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/S (27.5) | 592 | 405 | 74.4 | 62.5 | 100 | 570 | 400 | 744 | 5 | 769 | 400 | 1169 |
| SM (27.5) | 599 | 425 | 73.5 | 62.5 | 108 | 602 | 415 | 757 | 5 | 793 | 410 | 1203 |
| ML (27.5) | 606 | 445 | 72.6 | 62.5 | 115 | 634 | 430 | 768 | 5 | 817 | 420 | 1237 |
| L/XL (27.5) | 612 | 465 | 71.8 | 62.5 | 122 | 666 | 445 | 780 | 5 | 840 | 430 | 1270 |
| L/XL (29) | 617 | 461 | 71.6 | 62.5 | 100 | 666 | 446 | 787 | 24 | 835 | 430 | 1265 |
| ML (29) | 617 | 441 | 72.3 | 62.5 | 100 | 637 | 431 | 775 | 24 | 815 | 420 | 1235 |
All measurements in millimetres unless marked (°) for angles.
