2015 Norco · MD

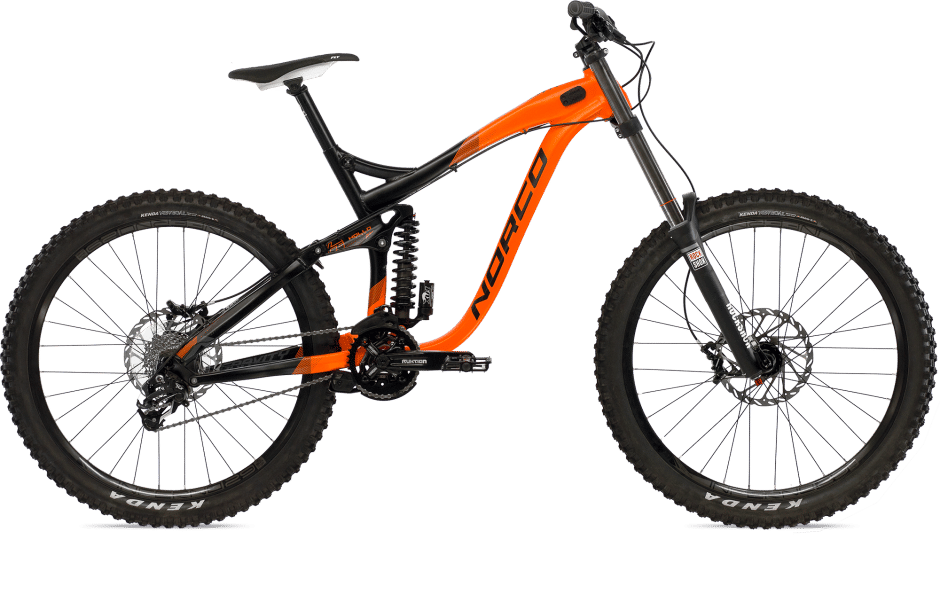

2015 Norco Aurum 6 geometry
Full frame geometry for the 2015 Norco Aurum 6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 585 | 448 | 71 | 63 | 110 | 649 | 455 | 763 | 3 | 794 | 430 | 1224 |
| M | 585 | 421 | 71.4 | 63 | 110 | 617 | 435 | 781 | 3 | 767 | 425 | 1192 |
| S | 585 | 394 | 71.9 | 63 | 110 | 585 | 415 | 796 | 3 | 740 | 420 | 1160 |
All measurements in millimetres unless marked (°) for angles.
