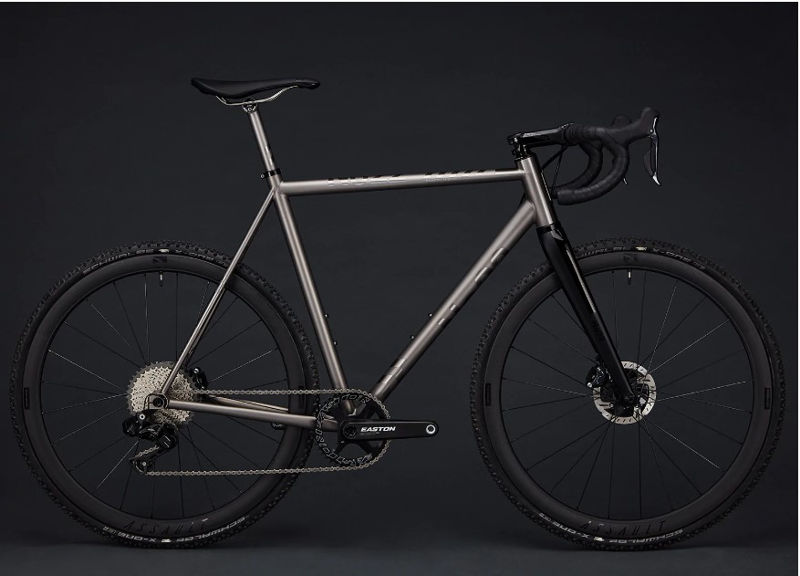

2022 No22 Broken Arrow geometry
Full frame geometry for the 2022 No22 Broken Arrow, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 48cm | 524 | 353 | 74 | 70.5 | 90 | 505 | 763 | 68 | 571 |
| 50cm | 533 | 355 | 74 | 70.5 | 100 | 510 | 778 | 68 | 577 |
| 52cm | 552 | 360 | 73.5 | 70.5 | 120 | 525 | 797 | 68 | 588 |
| 54cm | 576 | 371 | 73.3 | 71.3 | 140 | 545 | 820 | 68 | 594 |
| 56cm | 583 | 381 | 73 | 71.3 | 150 | 560 | 830 | 66 | 607 |
| 58cm | 593 | 392 | 73 | 71.5 | 160 | 575 | 846 | 66 | 620 |
| 60cm | 611 | 396 | 72.5 | 71.8 | 180 | 590 | 867 | 64 | 627 |
All measurements in millimetres unless marked (°) for angles.
