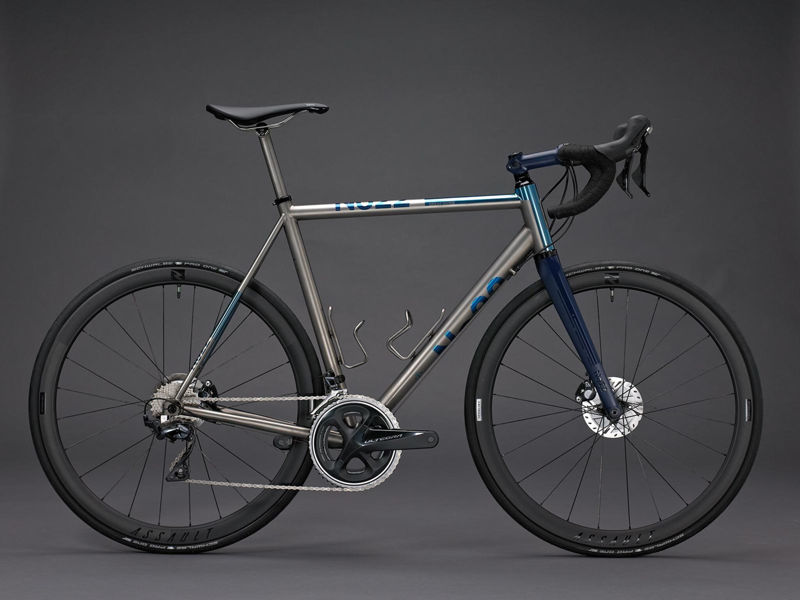

2022 No22 Great Divide Disc geometry
Full frame geometry for the 2022 No22 Great Divide Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 48cm | 508 | 356 | 75 | 70.5 | 85 | 495 | 731 | 78 | 567 |
| 50cm | 520 | 364 | 74.5 | 71 | 95 | 510 | 744 | 78 | 574 |
| 52cm | 536 | 369 | 74 | 71.2 | 115 | 525 | 768 | 75 | 584 |
| 54cm | 560 | 378 | 73.5 | 72.2 | 135 | 545 | 794 | 75 | 586 |
| 56cm | 580 | 382 | 73 | 72.5 | 155 | 560 | 814 | 75 | 594 |
| 58cm | 599 | 397 | 73 | 73 | 175 | 580 | 837 | 73 | 609 |
| 60cm | 619 | 405 | 72.5 | 73 | 195 | 600 | 858 | 73 | 623 |
All measurements in millimetres unless marked (°) for angles.
