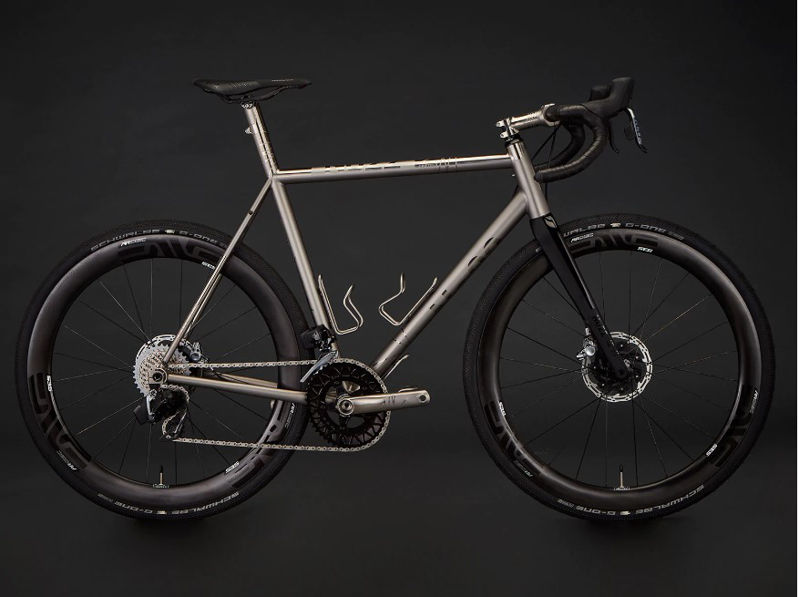

2022 No22 Drifter X geometry
Full frame geometry for the 2022 No22 Drifter X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 48cm | 521 | 355 | 74.5 | 70.5 | 110 | 502 | 758 | 73 | 571 |
| 50cm | 530 | 356 | 74 | 70.5 | 120 | 511 | 772 | 73 | 576 |
| 52cm | 546 | 363 | 74 | 70.8 | 135 | 525 | 790 | 73 | 589 |
| 54cm | 564 | 376 | 73.5 | 71 | 155 | 545 | 809 | 72 | 603 |
| 56cm | 577 | 382 | 73 | 71.2 | 170 | 560 | 824 | 70 | 612 |
| 58cm | 596 | 392 | 73 | 71.2 | 190 | 575 | 842 | 70 | 627 |
| 60cm | 616 | 400 | 72.5 | 71.5 | 210 | 595 | 863 | 70 | 640 |
All measurements in millimetres unless marked (°) for angles.
