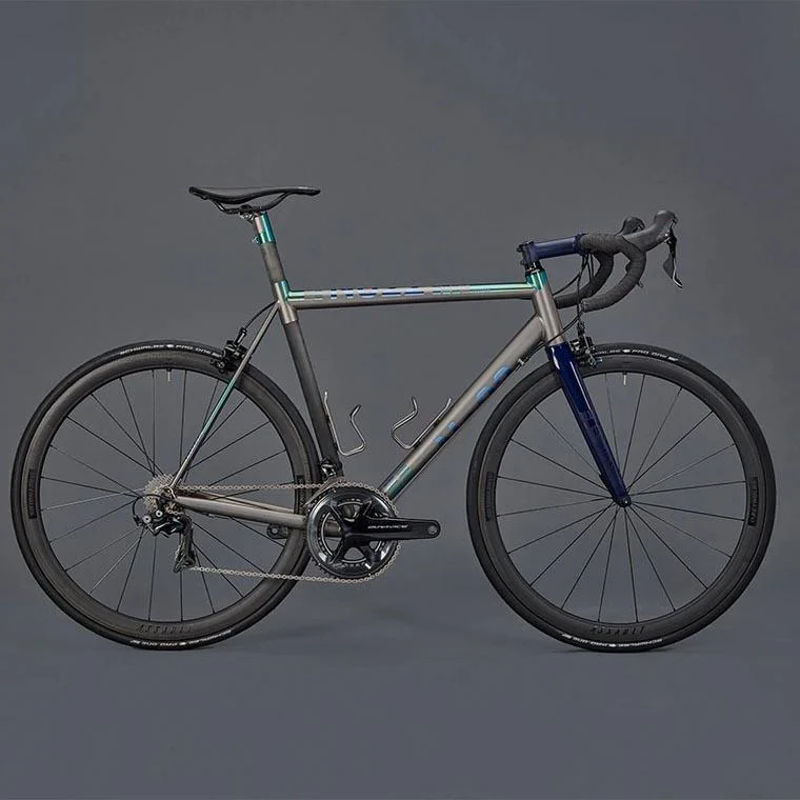

2022 No22 Reactor geometry
Full frame geometry for the 2022 No22 Reactor, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50cm | 503 | 374 | 74.5 | 72 | 100 | 515 | 456 | 739 | 72 | 571 | 410 |
| 52cm | 522 | 379 | 74 | 72 | 120 | 530 | 475 | 757 | 72 | 582 | 410 |
| 54cm | 545 | 388 | 74 | 72.8 | 140 | 545 | 496 | 779 | 72 | 586 | 412 |
| 56cm | 564 | 395 | 73.2 | 73.2 | 160 | 565 | 514 | 800 | 70 | 595 | 412 |
| 58cm | 590 | 400 | 73 | 73.2 | 190 | 580 | 545 | 829 | 68 | 608 | 415 |
| 60cm | 609 | 409 | 73 | 73.2 | 210 | 595 | 568 | 850 | 68 | 623 | 415 |
All measurements in millimetres unless marked (°) for angles.
