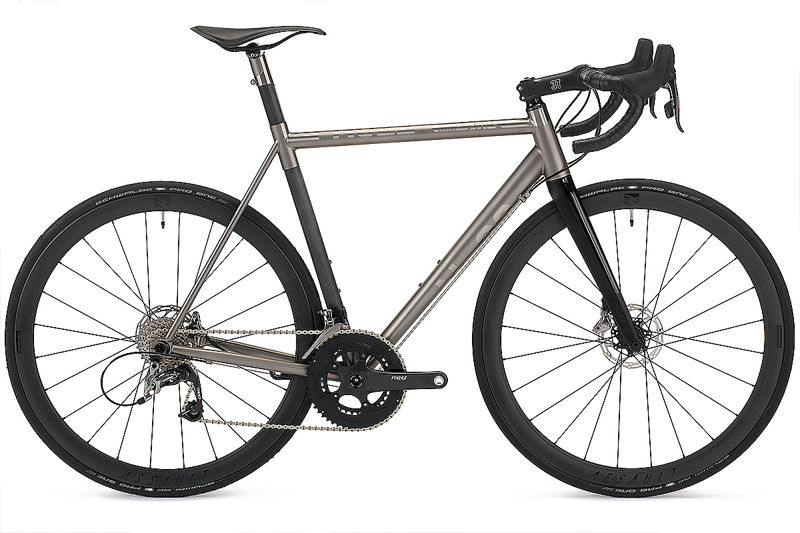

2022 No22 Aurora geometry
Full frame geometry for the 2022 No22 Aurora, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 48cm | 510 | 355 | 75 | 70.5 | 100 | 495 | 731 | 78 | 567 | 415 |
| 50cm | 521 | 363 | 74.5 | 71 | 110 | 510 | 745 | 78 | 574 | 415 |
| 52cm | 538 | 369 | 74 | 71.2 | 130 | 525 | 770 | 75 | 584 | 415 |
| 54cm | 562 | 378 | 73.5 | 72.2 | 150 | 545 | 795 | 75 | 586 | 418 |
| 56cm | 582 | 382 | 73 | 72.5 | 170 | 560 | 814 | 75 | 594 | 418 |
| 58cm | 601 | 396 | 73 | 73 | 190 | 580 | 838 | 73 | 609 | 418 |
| 60cm | 620 | 405 | 72.5 | 73 | 210 | 600 | 859 | 73 | 624 | 420 |
All measurements in millimetres unless marked (°) for angles.
