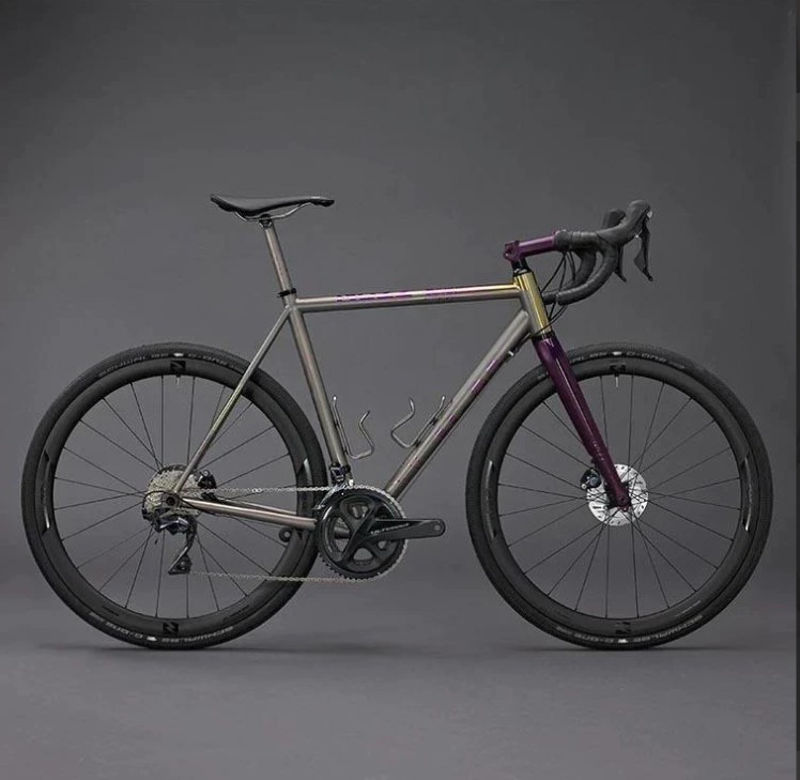

2022 No22 Drifter geometry
Full frame geometry for the 2022 No22 Drifter, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) |
|---|---|---|---|---|---|---|---|---|
| 48cm | 529 | 74.5 | 70.5 | 105 | 502 | 762 | 73 | 572 |
| 50cm | 538 | 74 | 70.5 | 115 | 510 | 775 | 73 | 576 |
| 52cm | 553 | 74 | 70.8 | 130 | 526 | 795 | 73 | 589 |
| 54cm | 572 | 73.5 | 71 | 150 | 545 | 813 | 72 | 603 |
| 56cm | 585 | 73 | 71.2 | 165 | 560 | 828 | 70 | 612 |
| 58cm | 604 | 73 | 71.2 | 185 | 575 | 845 | 70 | 627 |
| 60cm | 624 | 72.5 | 71.5 | 205 | 595 | 861 | 70 | 640 |
All measurements in millimetres unless marked (°) for angles.
