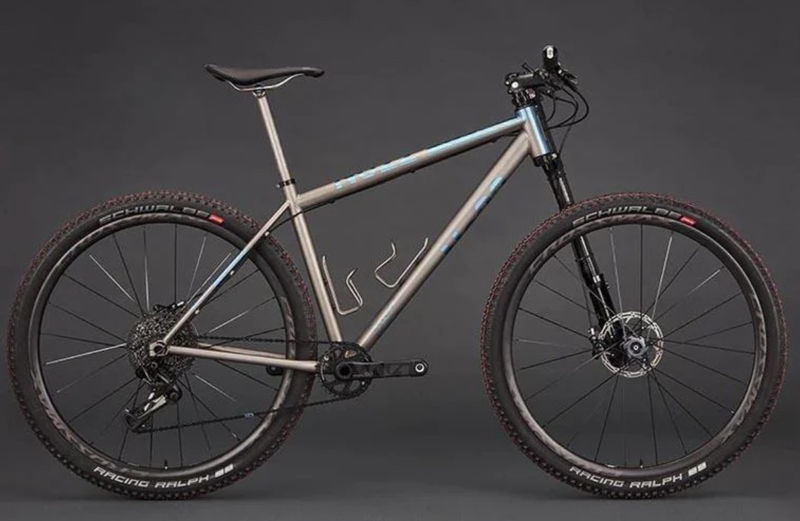

2022 No22 Old King geometry
Full frame geometry for the 2022 No22 Old King, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| Small | 599 | 401 | 73.5 | 70 | 100 | 580 | 799 | 58 | 655 |
| Medium | 609 | 423 | 73.5 | 70 | 110 | 605 | 816 | 58 | 680 |
| Large | 619 | 437 | 73.5 | 70 | 120 | 622 | 838 | 58 | 698 |
| Extra Large | 637 | 451 | 73.3 | 70 | 140 | 642 | 863 | 58 | 719 |
All measurements in millimetres unless marked (°) for angles.
