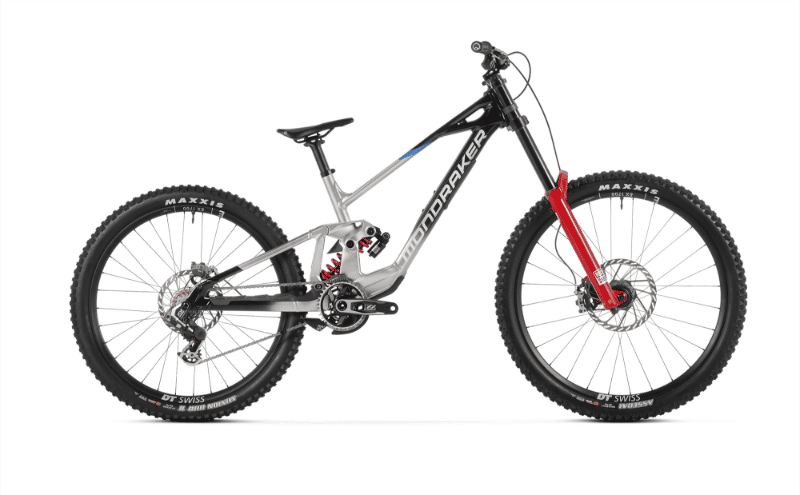

2026 Mondraker Summum geometry
Full frame geometry for the 2026 Mondraker Summum, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 642.6 | 480 | 68 | 62.5 | 120 | 739.6 | 400 | 5 | 455 | 1315.4 | 52 |
| M | 642.6 | 450 | 68 | 62.5 | 120 | 709.6 | 400 | 5 | 455 | 1285.4 | 52 |
| XL | 642.6 | 510 | 68 | 62.5 | 120 | 769.6 | 400 | 5 | 455 | 1345.4 | 52 |
All measurements in millimetres unless marked (°) for angles.
