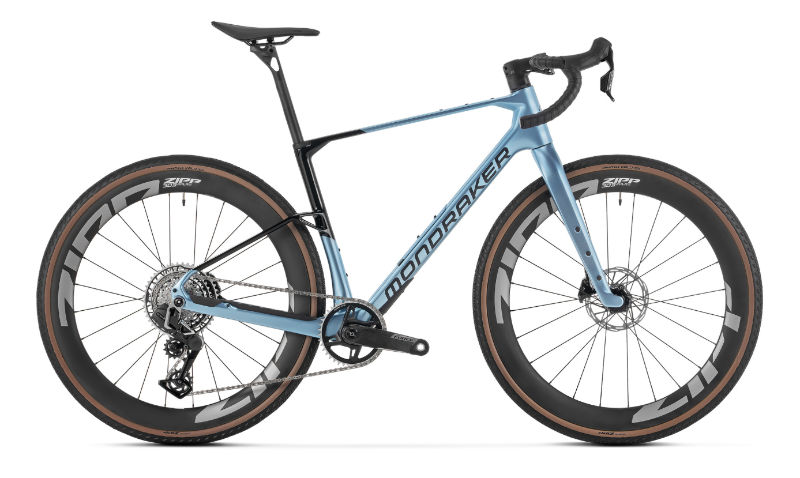

2025 Mondraker Arid Carbon RR geometry
Full frame geometry for the 2025 Mondraker Arid Carbon RR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 548 | 363 | 73 | 70 | 100 | 520 | 410 | -75 | 425 | 1003 | 45 |
| M | 572 | 386 | 73 | 70 | 125 | 550 | 450 | -75 | 425 | 1035 | 45 |
| M/L | 591 | 411 | 73 | 70 | 145 | 580 | 480 | -75 | 425 | 1067 | 45 |
| L | 619 | 423 | 73 | 70 | 175 | 600 | 510 | -75 | 425 | 1089 | 45 |
| XL | 642 | 446 | 73 | 70 | 200 | 630 | 540 | -75 | 425 | 1121 | 45 |
All measurements in millimetres unless marked (°) for angles.
