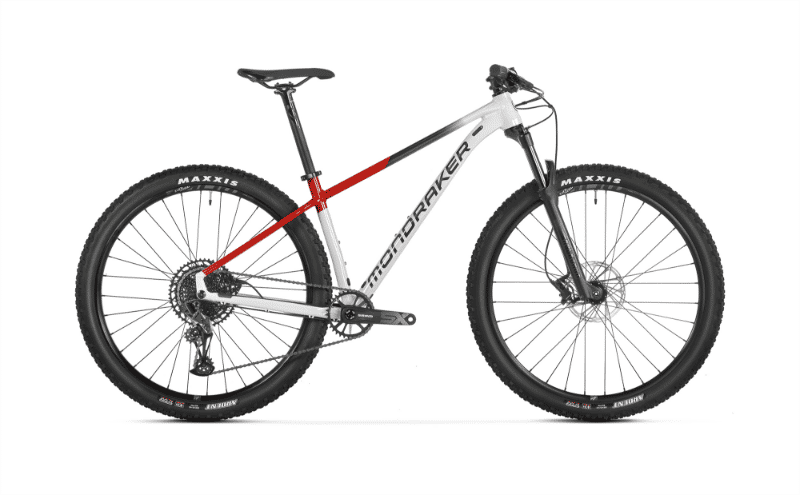

2027 Mondraker Chrono DC geometry
Full frame geometry for the 2027 Mondraker Chrono DC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 624 | 440 | 72.5 | 68.5 | 100 | 610 | 420 | 65 | 430 | 1133 | 44 |
| S | 624 | 425 | 72.5 | 68.5 | 100 | 590 | 390 | 65 | 430 | 1118 | 44 |
| L | 642 | 460 | 72.5 | 68.5 | 120 | 630 | 470 | 65 | 430 | 1160 | 44 |
| XL | 642 | 475 | 72.5 | 68.5 | 120 | 650 | 520 | 65 | 430 | 1175 | 44 |
All measurements in millimetres unless marked (°) for angles.
