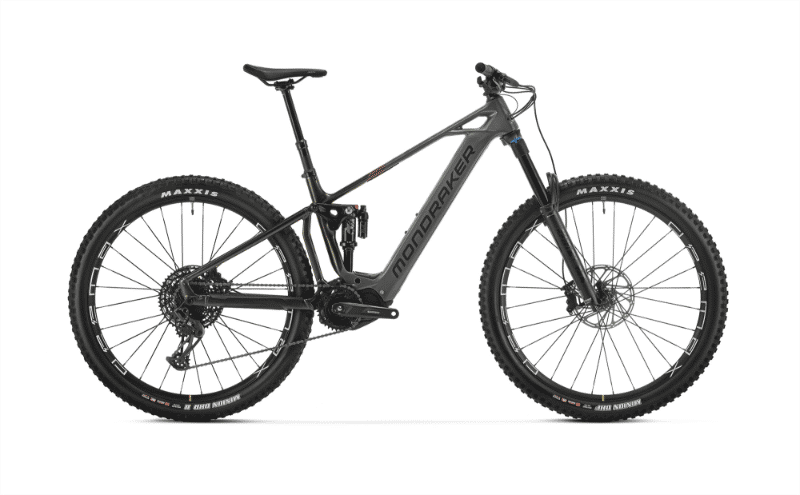

2026 Mondraker Crusher geometry
Full frame geometry for the 2026 Mondraker Crusher, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 622 | 470 | 73.5 | 65 | 110 | 625 | 420 | -25 | 455 | 1247 | 44 |
| S | 622 | 450 | 73.5 | 65 | 110 | 605 | 380 | -25 | 455 | 1227 | 44 |
| L | 640 | 490 | 73.5 | 65 | 130 | 650 | 450 | -25 | 455 | 1267 | 44 |
| XL | 640 | 510 | 73.5 | 65 | 130 | 670 | 490 | -25 | 455 | 1387 | 44 |
All measurements in millimetres unless marked (°) for angles.
