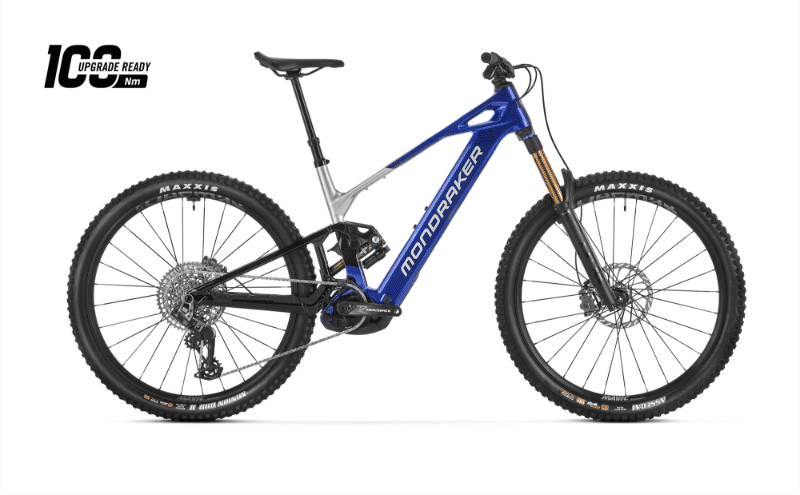

2026 Mondraker Crafty Carbon RR geometry
Full frame geometry for the 2026 Mondraker Crafty Carbon RR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 638 | 460 | 73 | 64.5 | 120 | 596 | 410 | -25 | 455 | 1255 | 44 |
| S | 638 | 445 | 73 | 64.5 | 120 | 581 | 380 | -25 | 455 | 1240 | 44 |
| ML | 647 | 480 | 73 | 64.5 | 130 | 618 | 435 | -25 | 455 | 1280 | 44 |
| L | 656 | 500 | 73 | 64.5 | 140 | 640 | 460 | -25 | 465 | 1314 | 44 |
| XL | 665 | 520 | 73 | 64.5 | 150 | 662 | 490 | -25 | 465 | 1338 | 44 |
All measurements in millimetres unless marked (°) for angles.
