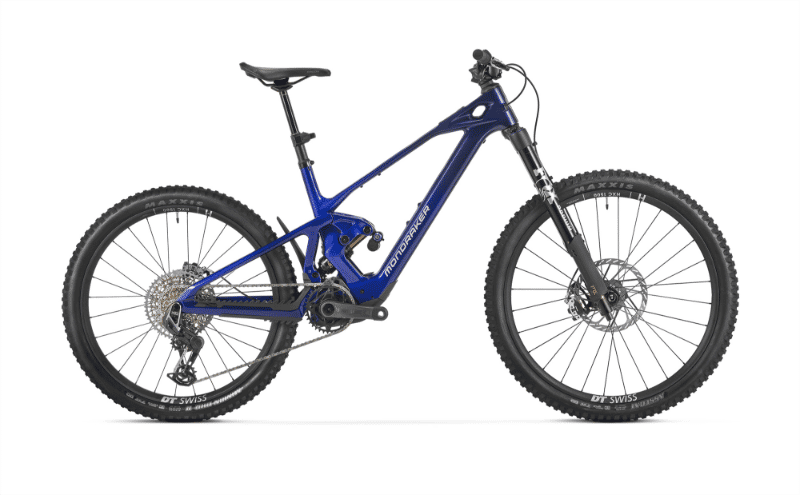

2026 Mondraker Zendit geometry
Full frame geometry for the 2026 Mondraker Zendit, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 631 | 460 | 73.5 | 63.5 | 110 | 606 | 410 | 6 | 450 | 1261 | 44 |
| S | 631 | 440 | 73.5 | 63.5 | 110 | 586 | 380 | 6 | 450 | 1241 | 44 |
| ML | 640 | 480 | 73.5 | 63.5 | 120 | 628 | 435 | 6 | 450 | 1286 | 44 |
| L | 649 | 500 | 73.5 | 63.5 | 130 | 650 | 460 | 6 | 455 | 1315 | 44 |
| XL | 658 | 520 | 73.5 | 63.5 | 140 | 672 | 490 | 6 | 455 | 1339 | 44 |
All measurements in millimetres unless marked (°) for angles.
