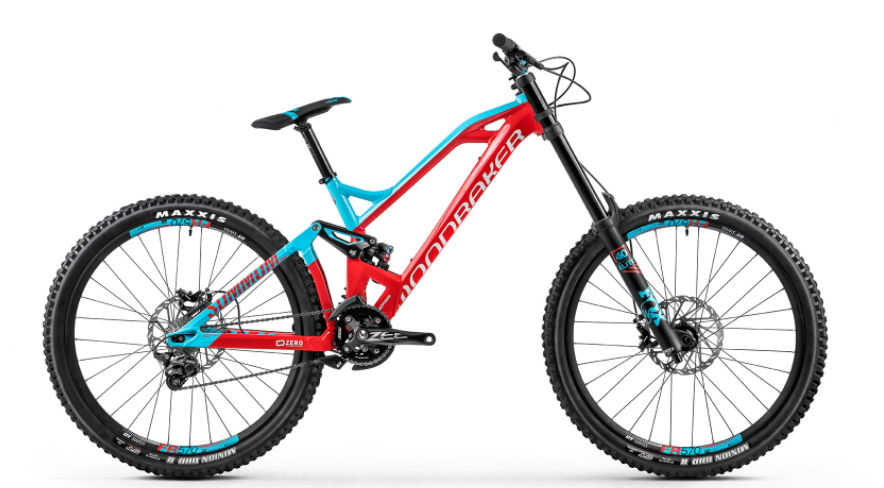

2018 Mondraker Summum geometry
Full frame geometry for the 2018 Mondraker Summum, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 597 | 422 | 73.5 | 63 | 112 | 600 | 400 | 0 | 1225 | 52 |
All measurements in millimetres unless marked (°) for angles.
