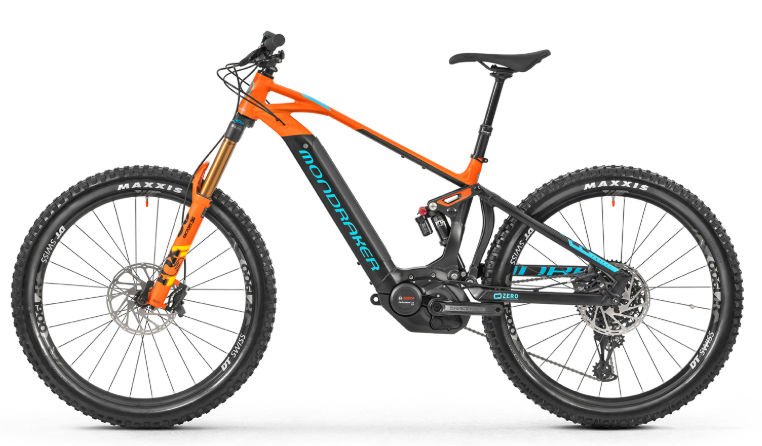

2019 Mondraker Crafty RR + geometry
Full frame geometry for the 2019 Mondraker Crafty RR +, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 442 | 74.3 | 65.3 | 100 | 615 | 380 | 19 | 475 | 1242 | 44 |
| M | 624 | 467 | 74.3 | 65.3 | 120 | 642 | 420 | 19 | 475 | 1276 | 44 |
| L | 642 | 487 | 74.3 | 65.3 | 140 | 667 | 470 | 19 | 475 | 1304 | 44 |
| XL | 652 | 507 | 74.3 | 65.3 | 150 | 690 | 500 | 19 | 475 | 1328 | 44 |
All measurements in millimetres unless marked (°) for angles.
