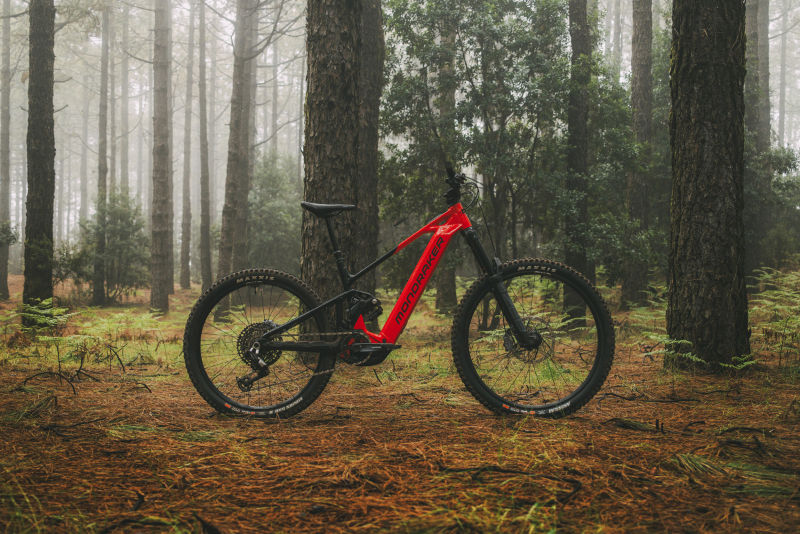

2026 Mondraker Level R geometry
Full frame geometry for the 2026 Mondraker Level R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 640 | 440 | 75.3 | 64 | 110 | 576 | 380 | -2 | 445 | 1236 | 44 |
| M | 649 | 460 | 75.3 | 64 | 120 | 598 | 410 | -2 | 445 | 1260 | 44 |
| ML | 658 | 480 | 75.3 | 64 | 130 | 620 | 435 | -2 | 445 | 1284 | 44 |
| L | 667 | 500 | 75.3 | 64 | 140 | 642 | 460 | -2 | 455 | 1319 | 44 |
| XL | 676 | 520 | 75.3 | 64 | 150 | 664 | 490 | -2 | 455 | 1343 | 44 |
All measurements in millimetres unless marked (°) for angles.
