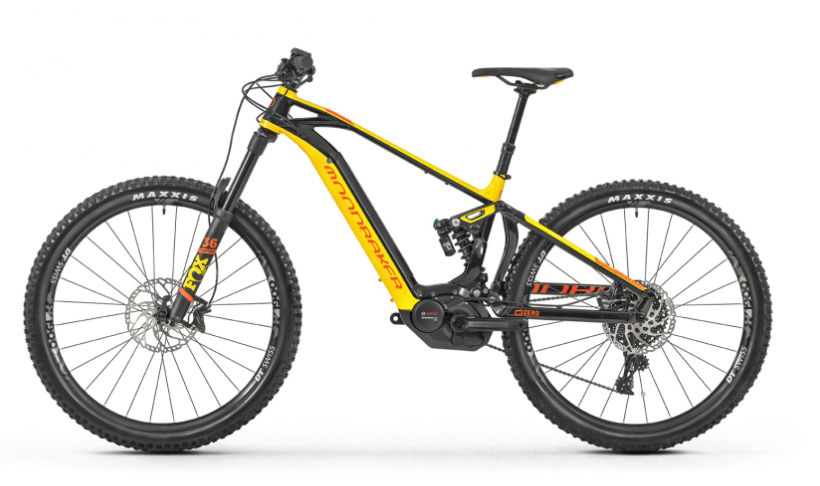

2019 Mondraker Level R geometry
Full frame geometry for the 2019 Mondraker Level R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 433 | 74 | 65 | 100 | 613 | 380 | 15 | 490 | 1254 | 44 |
| M | 627 | 462 | 74 | 65 | 120 | 642 | 420 | 15 | 490 | 1288 | 44 |
| L | 645 | 479 | 74 | 65 | 140 | 665 | 470 | 15 | 490 | 1316 | 44 |
| XL | 655 | 498 | 74 | 65 | 150 | 688 | 500 | 15 | 490 | 1340 | 44 |
All measurements in millimetres unless marked (°) for angles.
