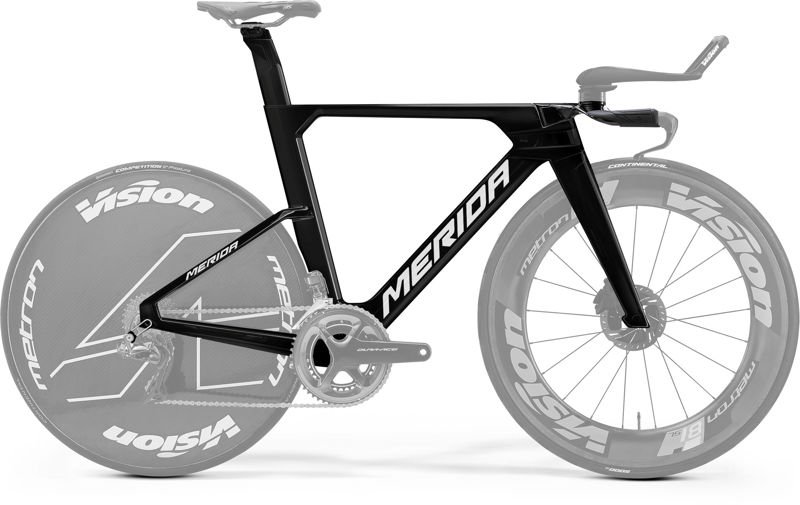

2022 Merida Warp TT geometry
Full frame geometry for the 2022 Merida Warp TT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 463 | 399 | 76 | 72 | 72 | 514 | 500 | 781 | 55 | 415 | 988 |
| M | 478 | 435 | 76 | 72 | 72 | 554 | 540 | 799 | 70 | 415 | 1022 |
| L | 519 | 445 | 76 | 72 | 115 | 574 | 580 | 838 | 70 | 415 | 1045 |
All measurements in millimetres unless marked (°) for angles.
