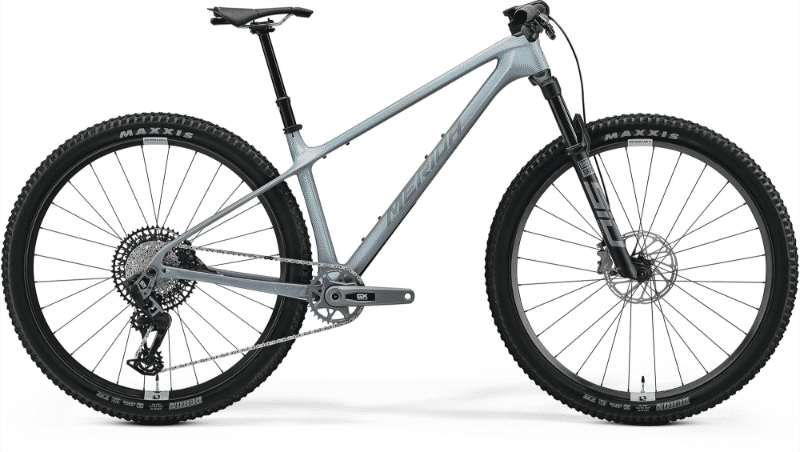

2026 Merida BIG.NINE TR geometry
Full frame geometry for the 2026 Merida BIG.NINE TR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 614 | 440 | 74.2 | 66.9 | 95 | 614 | 410 | 711 | 57 | 433 | 1155 | 44 |
| S | 614 | 420 | 74.2 | 66.9 | 95 | 594 | 380 | 711 | 57 | 430 | 1132 | 44 |
| L | 624 | 460 | 74.2 | 66.9 | 105 | 637 | 440 | 717 | 57 | 436 | 1182 | 44 |
| XL | 633 | 480 | 74.2 | 66.9 | 115 | 659 | 470 | 738 | 57 | 439 | 1209 | 44 |
| XXL | 643 | 500 | 74.2 | 66.9 | 125 | 681 | 500 | 759 | 57 | 442 | 1235 | 44 |
All measurements in millimetres unless marked (°) for angles.
