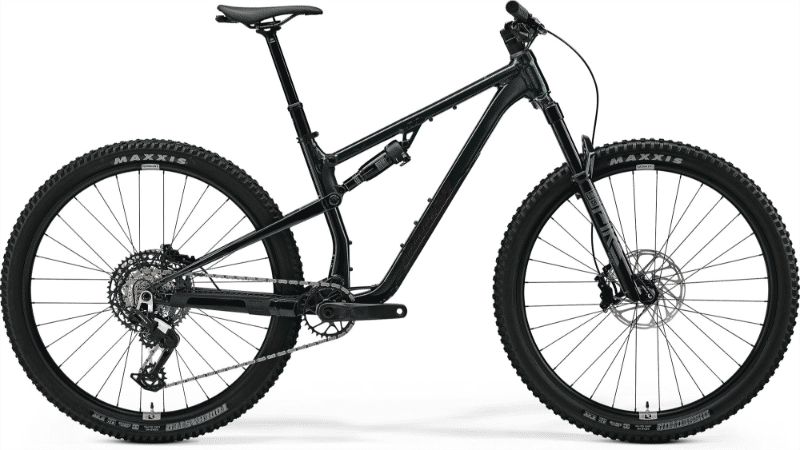

2026 Merida ONE-TWENTY geometry
Full frame geometry for the 2026 Merida ONE-TWENTY, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XShort | 604 | 425 | 78.5 | 66 | 95 | 548 | 400 | 748 | 40 | 435 | 1155 | 44 |
| Short | 609 | 445 | 78.5 | 66 | 100 | 569 | 410 | 750 | 40 | 435 | 1177 | 44 |
| Mid | 613 | 465 | 78.5 | 66 | 105 | 590 | 425 | 752 | 40 | 435 | 1199 | 44 |
| Long | 618 | 485 | 78.5 | 66 | 110 | 611 | 445 | 754 | 40 | 435 | 1221 | 44 |
| XLong | 622 | 505 | 78.5 | 66 | 115 | 632 | 470 | 756 | 40 | 435 | 1243 | 44 |
All measurements in millimetres unless marked (°) for angles.
