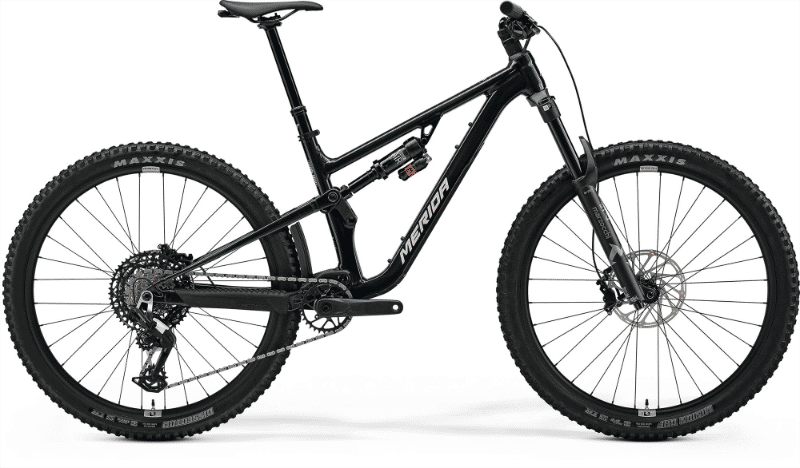

2026 Merida ONE-FORTY geometry
Full frame geometry for the 2026 Merida ONE-FORTY, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mid | 607 | 480 | 80 | 65 | 95 | 586 | 425 | 738 | 35 | 437.5 | 1232 |
| Short | 607 | 453 | 80 | 65 | 95 | 559 | 410 | 735 | 35 | 437.5 | 1204 |
| XShort | 607 | 426 | 80 | 65 | 95 | 532 | 400 | 730 | 35 | 437.5 | 1177 |
| Long | 616 | 509 | 80 | 65 | 105 | 618 | 445 | 735 | 35 | 437.5 | 1265 |
| XLong | 629 | 535 | 80 | 65 | 120 | 649 | 470 | 730 | 35 | 437.5 | 1298 |
All measurements in millimetres unless marked (°) for angles.
