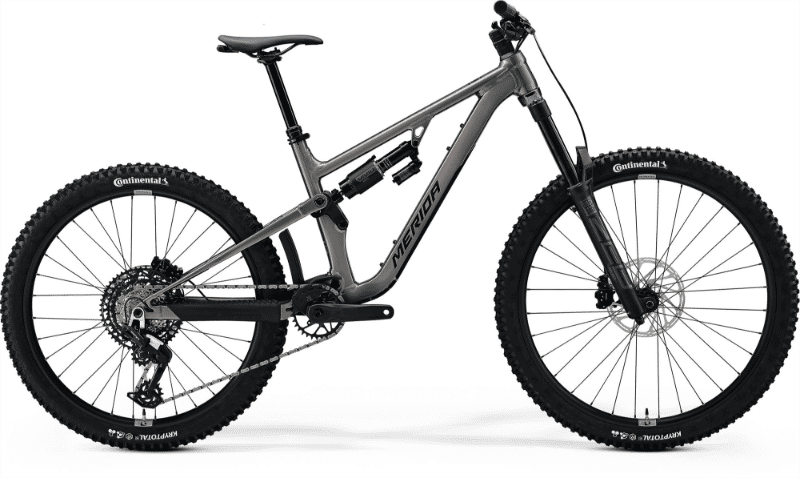

2026 Merida ONE-SIXTY geometry
Full frame geometry for the 2026 Merida ONE-SIXTY, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mid | 615 | 470 | 79 | 64 | 95 | 589 | 425 | 743 | 7 | 434 | 1242 | 44 |
| Short | 615 | 442 | 79 | 64 | 95 | 562 | 410 | 740 | 7 | 434 | 1215 | 44 |
| XShort | 615 | 415 | 79 | 64 | 95 | 535 | 400 | 735 | 7 | 434 | 1188 | 44 |
| Long | 625 | 498 | 79 | 64 | 105 | 621 | 445 | 740 | 27.5 | 437.5 | 1275 | 44 |
| XLong | 638 | 525 | 79 | 64 | 120 | 653 | 470 | 735 | 27.5 | 437.5 | 1308 | 44 |
All measurements in millimetres unless marked (°) for angles.
