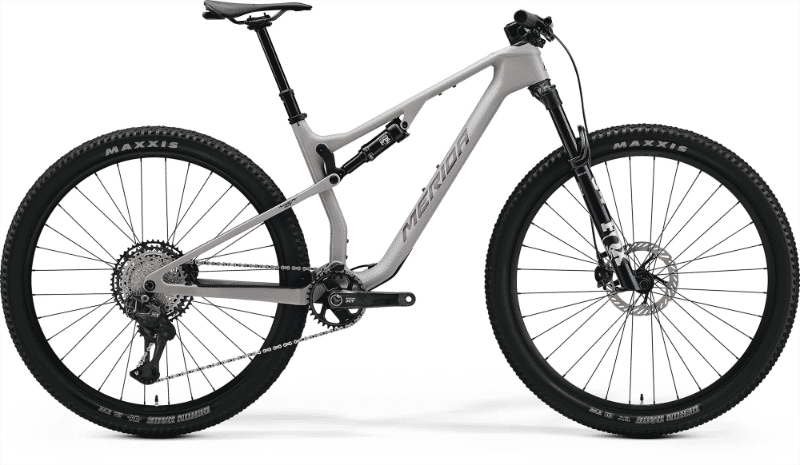

2026 Merida Ninety-Six geometry
Full frame geometry for the 2026 Merida Ninety-Six, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 595 | 440 | 75 | 67 | 95 | 601 | 440 | 741 | 36 | 435 | 1156 | 44 |
| S | 595 | 420 | 75 | 67 | 95 | 581 | 400 | 740 | 36 | 435 | 1136 | 44 |
| L | 605 | 460 | 75 | 67 | 105 | 624 | 470 | 747 | 36 | 435 | 1180 | 44 |
| XL | 614 | 480 | 74.5 | 67 | 115 | 648 | 500 | 749 | 36 | 435 | 1203 | 44 |
All measurements in millimetres unless marked (°) for angles.
