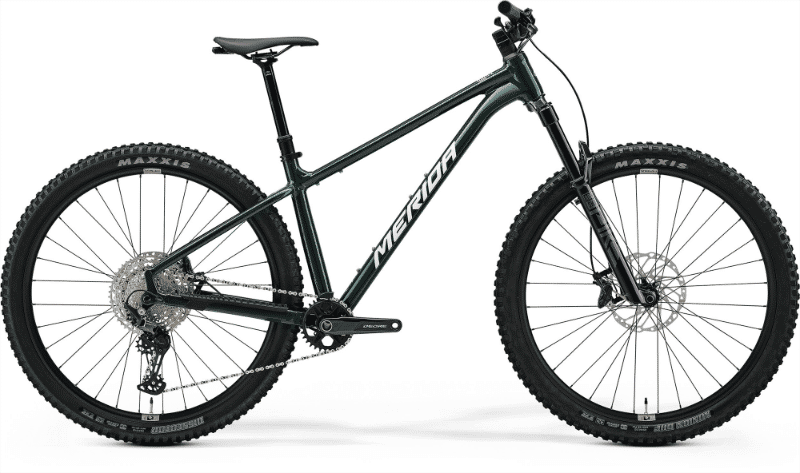

2026 Merida BIG.TRAIL geometry
Full frame geometry for the 2026 Merida BIG.TRAIL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 627 | 415 | 76.5 | 64 | 90 | 559 | 385 | 715 | 70 | 435 | 1165 | 44 |
| S | 636 | 435 | 76.5 | 64 | 100 | 581 | 400 | 721 | 70 | 435 | 1189 | 44 |
| M | 645 | 455 | 76.5 | 64 | 110 | 603 | 420 | 724 | 70 | 435 | 1214 | 44 |
| L | 654 | 480 | 76.5 | 64 | 120 | 630 | 445 | 726 | 70 | 435 | 1243 | 44 |
| XL | 663 | 505 | 76.5 | 64 | 130 | 657 | 475 | 729 | 70 | 435 | 1272 | 44 |
All measurements in millimetres unless marked (°) for angles.
