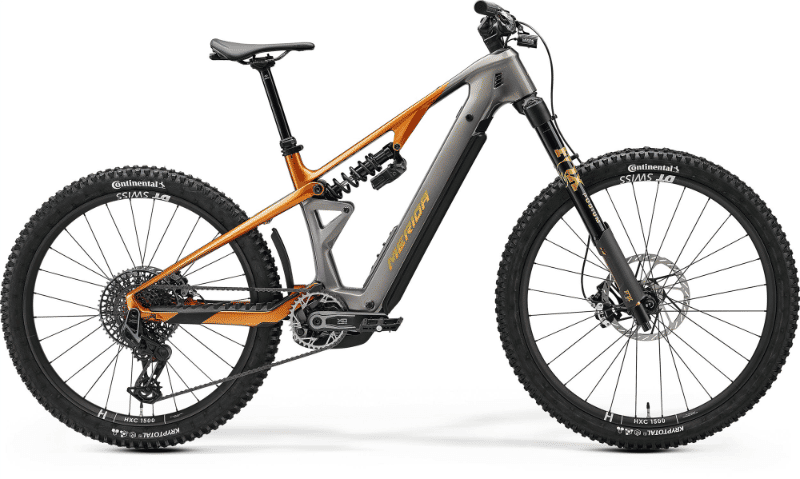

2027 Merida LITHOS geometry
Full frame geometry for the 2027 Merida LITHOS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XShort | 628 | 425 | 78.5 | 64 | 100 | 553 | 400 | 757 | 10 | 447 | 1216 | 44 |
| Short | 637 | 440 | 78.5 | 64 | 110 | 570 | 410 | 762 | 10 | 447 | 1235 | 44 |
| Mid | 646 | 460 | 78.5 | 64 | 120 | 593 | 425 | 762 | 10 | 447 | 1259 | 44 |
| Long | 655 | 485 | 78.5 | 64 | 130 | 621 | 445 | 765 | 10 | 447 | 1289 | 44 |
| XLong | 669 | 510 | 78.5 | 64 | 145 | 650 | 465 | 769 | 10 | 447 | 1320 | 44 |
All measurements in millimetres unless marked (°) for angles.
